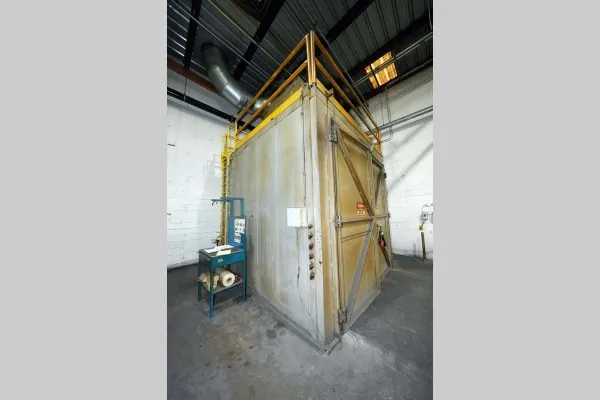

Used Wisconsin Model: SWH-101410-E 192 kW (655,000 BTU) Heat Treat Furnaces and Aging Ovens Natural Gas or Electric
1 / 11| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Wisconsin |
| Model | SWH-101410-E |
| Size | 192 kW (655,000 BTU) |
| Inventory Number | DCM-6298 |
Wisconsin - SWH-101410-E 192 kW (655,000 BTU) Heat Treat Furnaces and Aging Ovens Natural Gas or Electric, Honeywell Digital Temperature Controller Controls
View Available Heat Treat Aging Ovens
Questions? Call (847) 360-9170 and mention DCM-6298.
Features & Accessories
- Wisconsin Heat Treat Oven for Aging Aluminum Casting - High Capacity - 500 degree Fahrenheit Electric Walk-In Heat Treat and Aging Oven
- Heating elements located in heat chamber to prevent radiant heating
- Heavy duty doors
- Honeywell PID Type Digital Temperature Controller
- Motor control push buttons & on-off heat switch LED pilot lights
Item Specifications for DCM-6298
| US | Metric | |
| Heating Energy: | 192 kW (655,000 BTU) | 192 kW (655,000 BTU) |
| Heat Source: | Electric | Electric |
| Maximum Rated Temperature: | 500 degree F | 260 C |
| Design | Double Swinging Door Walk-in | Walk-in |
| Door Systems: | Double Swinging Door Walk-in, Single End Entry | Double Swinging Door Walk-in, Single End Entry |
| Circulating Fan Power: | 20 HP | 15 KW |
| Door Opening: | 120 x 120 inches (both doors open - Width by Height) | 3048 x 3048 mm (both doors open - Width by Height) |
| Interior Door Dimensions (Width x Length x Height): | 124 x 149 x 121 inches | 3150 x 3785 x 3073 mm |
| Exterior Dimensions (length x Width x Height): | 156 x 144 x 138 inches | 3962 x 3657 x 3505 mm |
| Power Requirements: | 253 Amps 480/3/60 | 253 Amps 480/3/60 |
Description
Used, Wisconsin Model SWH-101410-E 192 kW (655,000 BTU) Heat Treat Furnaces and Aging Ovens Natural Gas or Electric For_Sale, Features Include: Heating elements located in heat chamber to prevent radiant heating, Heavy duty doors, Honeywell PID Type Digital Temperature Controller, Motor control push buttons & on-off heat switch LED pilot lights, Honeywell Digital Temperature Controller controls, second Hand, DCM-6298
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
