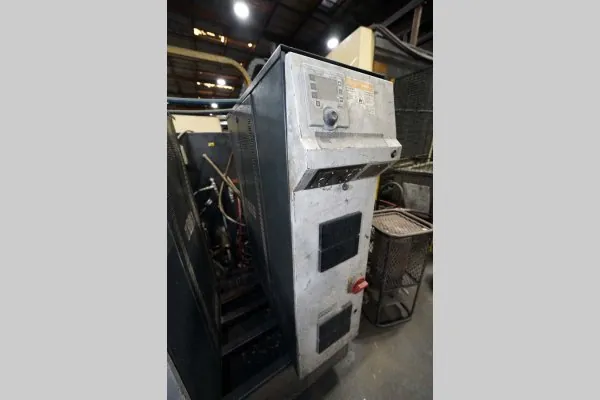

Used Regloplas Model: P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerRegloplas
ModelP160MD/18/SM75/2SK/RT100
Size36 kw (18 kW per zone)
Inventory NumberDCM-6244

Regloplas - P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit, RT100 Controls

View Available Hot Water Units

Questions? Call (847) 360-9170 and mention DCM-6244.

Features & Accessories

  • Leak-free pump with magnetic coupling
  • Solid-state relay (SSR)
  • High Limit Safety Circuit
  • Separate Expansion Tank
  • Regloplas RT-100 Digital Temperature Controller

Item Specifications for DCM-6244

USMetric
Main Heater Power (Zone #1):18 kW18 kW
Pump Motor Size (Zone #1):2.0 HP1.5 KW
Flow Rate (Zone #1):23.8 gallons per minute90 liters per minute
Connection size/type (Zone #1):3/4 inch NPT1.81 mm NPT
Main Heater Power (Zone #2):18 kW18 kW
Pump Motor Size (Zone #2):2 HP1.5 KW
Flow Rate (Zone #2):23.8 gallons per minute90 liters per minute
Connection size/type (Zone #2):3/4 inch NPT1.81 mm NPT
Maximum Operating Temperature:320 degrees Fahrenheit160 degrees C
Power Requirements:480 volt / 3 phase / 60 cycle480 volt / 3 phase / 60 cycle
Overall Size (L x W x H):16.38 x 56.3 x 40.83 inches416 x 1430 x 1037
Weight:374 Pounds170 kg

Description

Used, Regloplas Model P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit For_Sale, Features Include: Leak-free pump with magnetic coupling, Solid-state relay (SSR), High Limit Safety Circuit, Separate Expansion Tank, Regloplas RT-100 Digital Temperature Controller, RT100 controls, second Hand, DCM-6244

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
