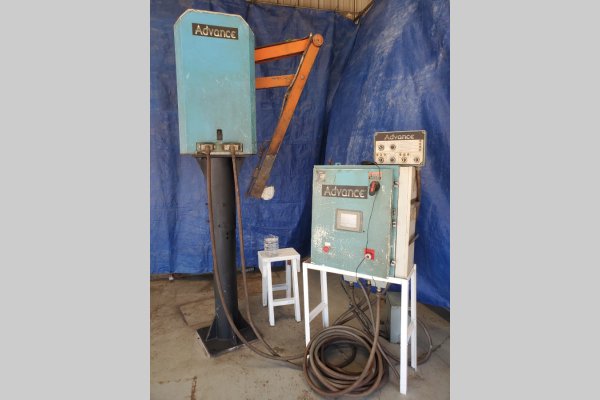

Used Advance Products Model: SL 1500 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 17| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | SL 1500 |
| Size | 25 Pound Capacity |
| Inventory Number | DCM-5893 |
Advance Products - SL 1500 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Mitsubishi FX-2 2N 32MR-R22 PLC Controls
Questions? Call (847) 360-9170 and mention DCM-5893.
Features & Accessories
- Color Touch-Screen Human-Machine-Interface (HMI) Plus Remote Push Button Station
- Mitsubishi PLC Controls and Motor Drives Powering Mitsubishi AC Servo Motors With Up To 500 Program Storage Capability
- Equipped with Adjustable Height Pedestal with Tilting Head Capability Plus Optional 18 Inch Bottom Riser
- Advance Forward on Pour Command - AKA Pour Forward - Helps Align Metal to Pour Location as Ladle Cup Empties
- Adjust shot weight on the fly during operation
- Auto Teach Mode
Item Specifications for DCM-5893
| US | Metric | |
| Total Stroke (Maximum): | Adjustable 88.5 inches | Adjustable 2247.9 mm |
| Forward Stroke (Maximum): | Adjustable 63 inches | Adjustable 1600.2 mm |
| Reach Back: | Adjustable 25.5 inches | Adjustable 647.7 mm |
| Pour Capacity (Aluminum): | 25 pounds | 11 Kg |
| Cycle Speed: | Adjustable | Adjustable |
| Power Requirements | 208/3/60 20 amp | 208/3/60 20 amp |
| Motor Drive: | Brushless Servo | Brushless Servo |
| Side of Operation: | Helper Side | Helper Side |
| User Interface: | Color HMI Touch Screen | Color HMI Touch Screen |
| Manual Controls: | Remote Push Button Station & HMI | Remote Push Button Station & HMI |
Description
Used, Advance Products Model SL 1500 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Color Touch-Screen Human-Machine-Interface (HMI) Plus Remote Push Button Station, Mitsubishi PLC Controls and Motor Drives Powering Mitsubishi AC Servo Motors With Up To 500 Program Storage Capability, Equipped with Adjustable Height Pedestal with Tilting Head Capability Plus Optional 18 Inch Bottom Riser, Advance Forward on Pour Command - AKA Pour Forward - Helps Align Metal to Pour Location as Ladle Cup Empties, Adjust shot weight on the fly during operation, Auto Teach Mode, Mitsubishi FX-2 2N 32MR-R22 PLC controls, second Hand, DCM-5893
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
