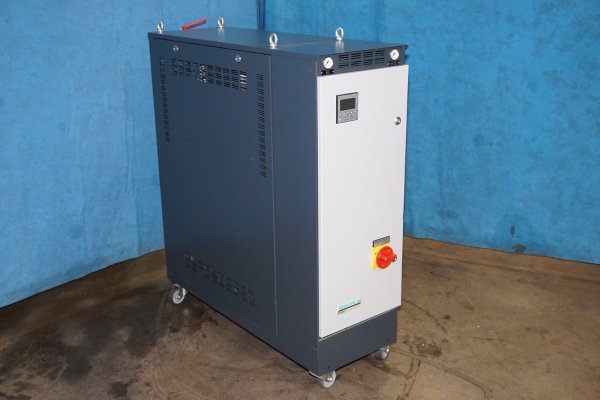

Used Regloplas Hot Water Model: P140XL/20/IMZ-G/SK/RT50 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit
1 / 31| Status | Sold |
|---|---|
| Manufacturer | Regloplas Hot Water |
| Model | P140XL/20/IMZ-G/SK/RT50 |
| Size | 20 kW |
| Inventory Number | DCM-5560 |
Regloplas Hot Water - P140XL/20/IMZ-G/SK/RT50 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit, RT50 Controls
View Available Hot Water Units
Questions? Call (847) 360-9170 and mention DCM-5560.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Leak-free pump with magnetic coupling
- Solid-state relay (SSR)
- High Limit Safety Circuit
- Separate Expansion Tank
- Regloplas RT-50 Digital Temperature Controller
Item Specifications for DCM-5560
| US | Metric | |
| Maximum Operating Temperature: | 284 degrees F | 140 degrees C |
| Maximum Flow Rate: | 63.4 gallons per minute (GPM) | 240 liters per minute (LPMP) |
| Maximum Rated System Pressure: | 66.8 Pounds Per Square Inch (PSIG) | 4.6 BAR |
| Pump Motor Size: | 3.75 Horsepower (HP) | 2.8 kw |
| Heating Capacity: | 20 kW | 20 kW |
| Cooling Capicty: | 110 kw | 110 kw |
| Tank Capacity/Expansion Capacity: | 9.64 Gallons/1.45 Gallons | 36.5 liters/5.5 liters |
| Process Connection Size/Type | 1.5 inches NPT (3/4 | 38.1 mm NPT (3/4 |
| Control: | Regloplas RT50 | Regloplas RT50 |
| Full Load Amps @ 400 volt: | 35 amp | 35 amp |
| Overall Size (L x W x H): | 53 x 17 x 53.4 inches | 1349 x 436 x 1357 mm |
| Weight: | 606 lbs | 275 kg |
Video
Documents
- Regloplas P140 - P160 - P180 Hot Water Units 2016PDF · 1.2 MB
- Regloplas RT50 Controller ManualPDF · 954 KB
- Regloplas Comprehensive Hot Oil & Hot Water Units 2016PDF · 1.5 MB
Description
Used, Regloplas Hot Water Model P140XL/20/IMZ-G/SK/RT50 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit For_Sale, Features Include: Leak-free pump with magnetic coupling, Solid-state relay (SSR), High Limit Safety Circuit, Separate Expansion Tank, Regloplas RT-50 Digital Temperature Controller, RT50 controls, second Hand, DCM-5560
