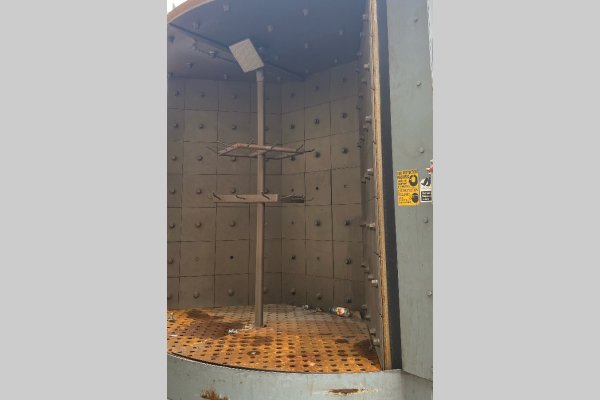

Used Gibson Model: 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine
1 / 17| Status | Sold |
|---|---|
| Manufacturer | Gibson |
| Model | 48x84-SH |
| Size | 48 x 84 inch |
| Inventory Number | DCM-5433 |
Gibson - 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine, Gibson Controls
View Available Spinner Hanger Blast Machines
Questions? Call (847) 360-9170 and mention DCM-5433.
Features & Accessories
- New in 2014 - Removed from Service in 2017 - Very Low Hour Machine
- Four (4) Blast Wheels allow for optimal blast pattern and production rate
- Two Chamber Design Allows for unlading & loading while machine is blasting is second chamber increasing productivity
- Manganese Steel Wear-Plates in Blast Chambers
- High Hook Weight Capacity
- Adjustable Abrasive Valve/Flow Rates to optimize Finish
- Spinner-Hanger Design Allows for 360 Degree Blasting of Parts
Item Specifications for DCM-5433
| US | Metric | |
| Number of Blast Wheels & Power: | Four (4) @ 10 HP each | Four (4) @ 7.5 kw each |
| Number of Blast Chambers: | 2 (two) 180 degree indexing | 2 (two) 180 degree indexing |
| Blast Wheel Slinger RPM: | Four (4) @ 3,450 RPM | Four (4) @ 3,450 RPM |
| Workload Capacity (Hangers): | 1,500 pounds | 681.8 KG |
| Hanger Rotational Speed: | 10.4 RPM | 10.4 RPM |
| Work Envelope max (optimal): | 48 x 84 (36 x 60 inches) | 1219 x 2133 mm (914 x 1524) |
| Chamber Indexing Speed: | 3.6 RPM | 3.6 RPM |
| Required Ventilation: | 6,700 CFM | 190 CMM (cubic meters/minute) |
| Electrical Requirements w/o Dust Collector: | 67 amps @ 480/3/60 | 67 amps @ 480/3/60 (56 kw) |
| Abrasive Charge Required: | 9,000 pounds | 4,082 KG |
| Machine Dimensions (width x depth x height): | 218 x 152 x 217 inches | 5,537 x 3,861 x 5,511 mm |
| Machine Weight: | 24,500 pounds | 11,113 KG |
Documents
- Gibson_48x84_Spinner_Hanger_Shot_Blast_MachinePDF · 4.7 MB
Description
Used, Gibson Model 48x84-SH 48 x 84 inch Indexing Two Chamber Spinner Hanger Abrasive Shot Blast & Peening Machine For_Sale, Features Include: Four (4) Blast Wheels allow for optimal blast pattern and production rate, Two Chamber Design Allows for unlading & loading while machine is blasting is second chamber increasing productivity, Manganese Steel Wear-Plates in Blast Chambers, High Hook Weight Capacity, Adjustable Abrasive Valve/Flow Rates to optimize Finish, Spinner-Hanger Design Allows for 360 Degree Blasting of Parts, Gibson controls, second Hand, DCM-5433
