SOLD

Used Rimrock Model: 414 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations

StatusSold
ManufacturerRimrock
Model414
Size36 Inches of vertical stroke
Inventory NumberDCM-4941

Rimrock - 414 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations, Epic Controls

View Available Automation (Die Cast)

Questions? Call (847) 360-9170 and mention DCM-4941.

Features & Accessories

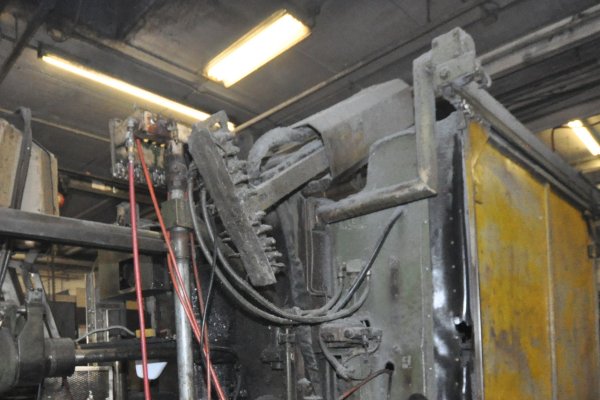

  • Located on Die Cast Machine #11
  • Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control
  • Platen mounted pedestal support with manual swing-out for ease of die change
  • Custom spray manifold with single lube capability and air blow off
  • Up to ten spray positions with intermediary sweeps
  • Rugged but compact design

Item Specifications for DCM-4941

USMetric
Vertical Stroke:36 inches1524 mm
Maximum Speed:80 inches per second2032 mmi per second
Drive MotorBrushless Servo MotorBrushless Servo Motor
Programmable Spray Positions:1010
Maximum Spray Nozzles (026 & 032)6 or 126 or 12
Lube Control:Single Lube with blow-offSingle Lube with blow-off
Power Requirements:120/1/60120/1/60

Description

Used, Rimrock Model 414 36 Inches of vertical stroke Linear Automatic Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Fully programmable, servo drive controlled reciprocator using the auto-teach mode via Rimrock Epic Control, Platen mounted pedestal support with manual swing-out for ease of die change, Custom spray manifold with single lube capability and air blow off, Up to ten spray positions with intermediary sweeps, Rugged but compact design, Epic controls, second Hand, DCM-4941

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
