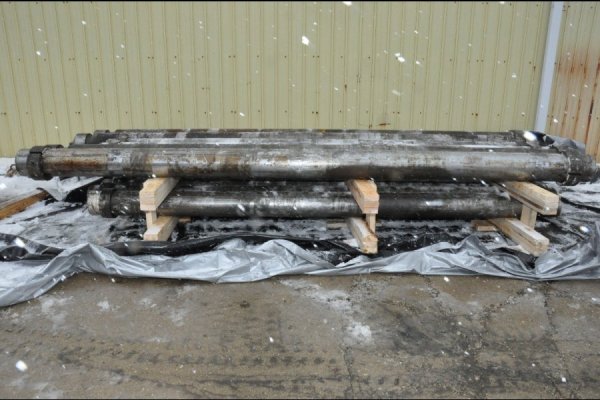

Used Prince Model: 629 Tie Bar for 650 ton Prince Die Cast Machine 6.75 inch (Diameter) Die Cast Machine Tie Bar
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 629 Tie Bar for 650 ton Prince Die Cast Machine |
| Size | 6.75 inch (Diameter) |
| Inventory Number | DCM-4916 |
Prince - 629 Tie Bar for 650 ton Prince Die Cast Machine 6.75 inch (Diameter) Die Cast Machine Tie Bar, n/a Controls
Questions? Call (847) 360-9170 and mention DCM-4916.
Features & Accessories
- See PDF Drawing further down this page | Can ship same day from stock
- Fits in most Prince Model 629 CCA, 629 CCM, 629 HC die cast machines - Used in 600 ton and 650 ton Buhler Price Die Cast Machine Applications
- Pre-Drilled for Electronic Tie bar Strain Gages
- Includes Front & Rear Split Rings and front tie bar crown
- Can ship same day from our Waukegan, Illinois Warehouse
- Expedited Same Day Delivery Available to Selected Regions
Item Specifications for DCM-4916
| US | Metric | |
| Tie Bar Diameter: | 6.75 inches | 171.45 mm |
| Tie Bar Length: | 136.875 | 3,476.62 mm |
| Tie Bar Fillet Width: | 3.00 inches | 76.20 mm |
| Distance end of bar to fillet: | 3.625 inches | 92.07 mm |
| Drilled for Tie Bar Puller: | Yes | Yes |
| Drilled for Stain Gauges: | Yes | Yes |
| Approximate Weight: | 1380 pounds | 815.5 kg |
| Includes Front Split-Ring: | Yes, included | Yes, included |
| Includes Rear Split-Ring: | Yes, included | Yes, included |
| Includes Front Tie Bar Crown: | Yes, included | Yes, included |
Documents
- Prince_600_Ton_Tie_Bar_SketchPDF · 222 KB
Description
Used, Prince Model 629 Tie Bar for 650 ton Prince Die Cast Machine 6.75 inch (Diameter) Die Cast Machine Tie Bar For_Sale, Features Include: Fits in most Prince Model 629 CCA, 629 CCM, 629 HC die cast machines - Used in 600 ton and 650 ton Buhler Price Die Cast Machine Applications, Pre-Drilled for Electronic Tie bar Strain Gages, Includes Front & Rear Split Rings and front tie bar crown, Can ship same day from our Waukegan, Illinois Warehouse, Expedited Same Day Delivery Available to Selected Regions, n/a controls, second Hand, DCM-4916
