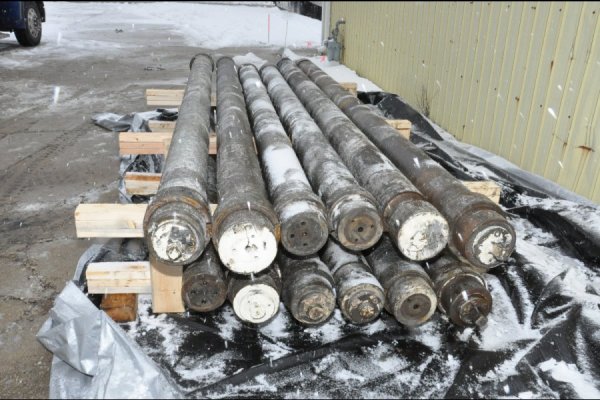

Used Prince Model: 836 Tie Bar for 850 ton Machine 7.5 inch (Diameter) Die Cast Machine Tie Bar
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 Tie Bar for 850 ton Machine |
| Size | 7.5 inch (Diameter) |
| Inventory Number | DCM-4911 |
Prince - 836 Tie Bar for 850 ton Machine 7.5 inch (Diameter) Die Cast Machine Tie Bar, n/a Controls
Questions? Call (847) 360-9170 and mention DCM-4911.
Features & Accessories
- See PDF Drawing further down this page | Can ship same day from stock
- Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 800 ton, 850 ton and 900 ton Prince Die Cast Machine Applications
- Pre-Drilled for Tie bar Strain Gages
- Includes One Split Ring and front tie bar crown
- Can ship same day from our Waukegan, Illinois Warehouse
- Expedited Same Day Delivery Available to Selected Regions
Item Specifications for DCM-4911
| US | Metric | |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Overall Tie Bar Length: | 154.375 inches | 3,921.125 mm |
| Tie Bar Fillet Width: | 3.50 inches | 88.9 mm |
| Distance end of bar to start of fillet: | 4-1/16 inches | 103.18 mm |
| Drilled for Stain Gauges: | Yes | Yes |
| Approximate Weight: | 2,029 pounds | 922.2 kg |
| Includes Front Split-Ring: | Yes, included | Yes, included |
| Includes Rear Split-Ring: | Yes, Included | Yes, Included |
| Includes Front Tie Bar Crown: | Yes, Included | Yes, Included |
Documents
- Prince_800_Ton_Tie_Bar_SketchPDF · 243 KB
Description
Used, Prince Model 836 Tie Bar for 850 ton Machine 7.5 inch (Diameter) Die Cast Machine Tie Bar For_Sale, Features Include: Fits in most Prince Model 836 CCA, 836 CCM, 836 HC die cast machines - Used in 800 ton, 850 ton and 900 ton Prince Die Cast Machine Applications, Pre-Drilled for Tie bar Strain Gages, Includes One Split Ring and front tie bar crown, Can ship same day from our Waukegan, Illinois Warehouse, Expedited Same Day Delivery Available to Selected Regions, n/a controls, second Hand, DCM-4911
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
