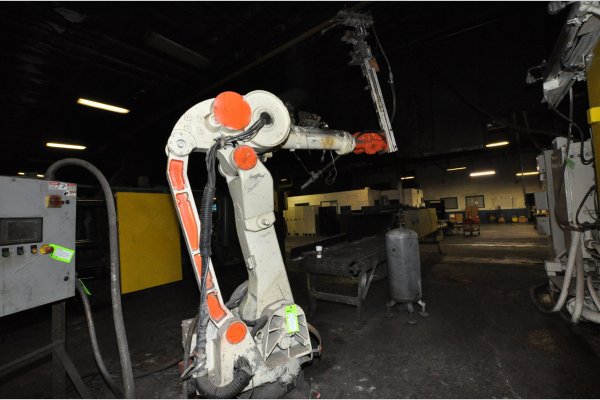

Used Kawasaki Model: ZX-165UFC32 165 Kilogram Six Axis Foundry Rated Industrial Robot
1 / 15| Status | Sold |
|---|---|
| Manufacturer | Kawasaki |
| Model | ZX-165UFC32 |
| Size | 165 Kilogram |
| Inventory Number | DCM-4798 |
Kawasaki - ZX-165UFC32 165 Kilogram Six Axis Foundry Rated Industrial Robot, ZX165UFC32 Type C Controls
Questions? Call (847) 360-9170 and mention DCM-4798.
Features & Accessories
- Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki ZX165U six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #10
- Equipped with a Parts Gripper for Gripping Die Casting Biscuit and also equipped with a Die Lube Spray Package
- Fast maneuverability
- Heavy Payload Capability
- Renowned Kawasaki Parts and Service
- Kawasaki Type ZX165UFC32 Type C Controls
- Compact Arm Design
Item Specifications for DCM-4798
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 363.7 pounds | 165 kg |
| Reach: | 98.4 inches | 2.5 meter |
| Axis 1 Rotation Motion: | +/- 180 degrees - 110 °/second | +/- 180 degrees - 110 °/second |
| Axis 2 Arm Out-in: | +75/-60 degrees - 110 °/second | +75/-60 degrees - 110 °/second |
| Axis 3 Arm Up-down: | +250/-120 degrees - 115 °/second | +250/-120 degrees - 115 °/second |
| Axis 4 Wrist Swivel: | +/- 360 degrees - 140 °/second | +/- 360 degrees - 140 °/second |
| Axis 5 Wrist Bend: | +/- 130 degrees - 115 °/second | +/- 130 degrees - 115 °/second |
| Axis 6 Wrist Twist: | +/- 360 degrees - 260°/second | +/- 360 degrees - 260°/second |
| Power: | 460/3/60 | 460/3/60 |
| Approximate Machine Weight: | 2,976 pounds | 1350 KG |
Video
Description
Used, Kawasaki Model ZX-165UFC32 165 Kilogram Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Equipped with a Parts Gripper for Gripping Die Casting Biscuit and also equipped with a Die Lube Spray Package, Fast maneuverability, Heavy Payload Capability, Renowned Kawasaki Parts and Service, Kawasaki Type ZX165UFC32 Type C Controls, Compact Arm Design, ZX165UFC32 Type C controls, second Hand, DCM-4798
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
