Used ABB Model: IRB 2400 20 Kilogram Six Axis Foundry Rated Industrial Robot
1 / 4| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | ABB |
| Model | IRB 2400 |
| Size | 20 Kilogram |
| Inventory Number | DCM-6044 |

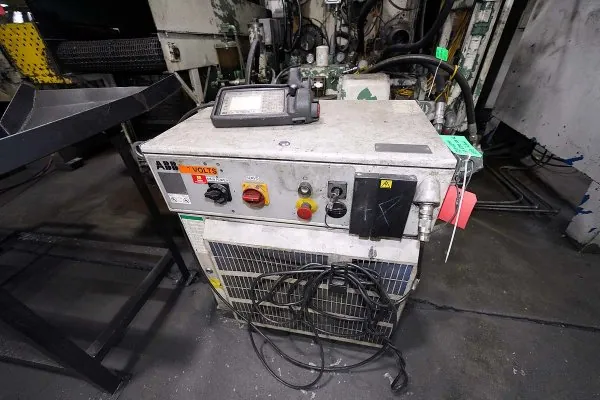

ABB - IRB 2400 20 Kilogram Six Axis Foundry Rated Industrial Robot, Controls
Questions? Call (847) 360-9170 and mention DCM-6044.
Features & Accessories
- Take Your Die Casting Die Spraying and Casting Extraction Process to the Next Level - Performance only achievable using a High Capacity/Long Reach Six Axis Industrial Robot
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned ABB Parts and Service
- Configured with Hardware for Automatic Die Spraying including Spray Regulators, Manifolds, Nozzles plus Automatic Parts Extracting - Including Gripper Package for Extracting the Die Casting from the Die Cast Machine and Loading Casting into Trim Press
Item Specifications for DCM-6044
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 44 pounds | 20 kg |
| Reach: | 61 inches | 1.55 meter |
| Axis 1 Rotation Motion: | +/- 360 Degrees - 150 °/second | +/- 360 Degrees - 150 °/second |
| Axis 2 Arm Motion: | +/- 210 Degrees - 150 °/second | +/- 210 Degrees - 150 °/second |
| Axis 3 Arm Motion: | +/- 125 Degrees - 150 °/second | +/- 125 Degrees - 150 °/second |
| Axis 4 Wrist Motion: | +/- 400 Degrees - 360 °/second | +/- 400 Degrees - 360 °/second |
| Axis 5 Bend Motion: | +/- 240 Degrees - 360 °/second | +/- 240 Degrees - 360 °/second |
| Axis 6 Turn Motion: | +/- 800 Degrees | +/- 800 Degrees |
| Power: | +/- 800 Degrees - 450 °/second | +/- 800 Degrees - 450 °/second |
| Approximate Machine Weight: | 661 pounds | 300 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Metal Mechanics Model: MM-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-6007
- Return To Pace Black Creek DCM #6 DCM-6039
- PCDC Model: PCDC-QT 280 280 Gallon Quench Tank Capacity Quench Tanks used for quenching die castings DCM-6040
- PCDC Model: PCDC-GNC 24 Inch Wide by 14 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6041
- PCDC Model: PCDC-SC 24 Inch Wide by 8 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6042
- Thermtronix Model: RS-3000 3000 pound bath 650 Pounds per Hour Melt Rate Electric Heated Silicon Carbide Crucible Type Aluminum Melting & Holding Furnace DCM-6043
- Rimrock/DieKast Model: 305/Diekast 300 Series 70 Inches of Stroke Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-6045
- PCDC Model: PCDC-30x156 30 Inch Wide by 13 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6046
Description
Used, ABB Model IRB 2400 20 Kilogram Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, Configured with Hardware for Automatic Die Spraying including Spray Regulators, Manifolds, Nozzles plus Automatic Parts Extracting - Including Gripper Package for Extracting the Die Casting from the Die Cast Machine and Loading Casting into Trim Press, controls, second Hand, DCM-6044
