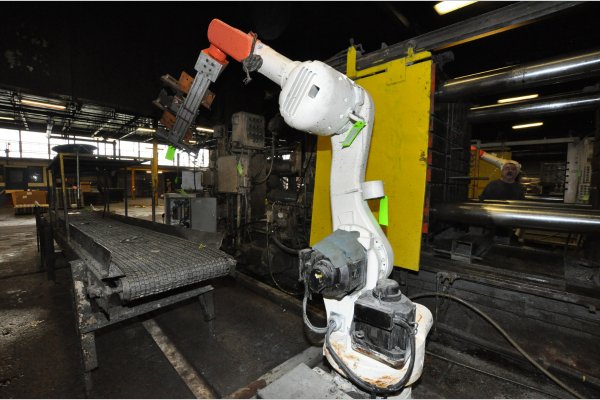

Used Kawasaki Model: RS-080N 80 Kilogram Six Axis Foundry Rated Industrial Robot
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Kawasaki |
| Model | RS-080N |
| Size | 80 Kilogram |
| Inventory Number | DCM-4796 |
Kawasaki - RS-080N 80 Kilogram Six Axis Foundry Rated Industrial Robot, Controls
Questions? Call (847) 360-9170 and mention DCM-4796.
Features & Accessories
- Available as a complete die cast cell including: Die Cast Machine, Rimrock 305 ladle, Cal-Miser low energy aluminum holding furnace, Kawasaki RS-080N six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #14
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned Kawasaki Parts and Service
Item Specifications for DCM-4796
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 176.37 pounds | 80 kg |
| Reach: | 82.6 inches | 2.100 meter |
| Axis 1 Rotation Motion: | +/- 180 degrees - 180 °/second | +/- 180 degrees - 180 °/second |
| Axis 2 Arm Out-in: | +140/-105 degrees - 180 °/second | +140/-105 degrees - 180 °/second |
| Axis 3 Arm Up-down: | +135/-155 degrees - 160 °/second | +135/-155 degrees - 160 °/secon |
| Axis 4 Wrist Swivel: | +/- 360 degrees - 185 °/second | +/- 360 degrees - 185 °/second |
| Axis 5 Wrist Bend: | +/- 360 degrees - 185 °/second | +/- 360 degrees - 185 °/second |
| Axis 6 Wrist Twist: | +/- 360 degrees - 280°/second | +/- 360 degrees - 280°/second |
| Power: | 460/3/60 | 460/3/60 |
| Approximate Machine Weight: | 1,223 pounds | 555 KG |
Video
Documents
Description
Used, Kawasaki Model RS-080N 80 Kilogram Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned Kawasaki Parts and Service, controls, second Hand, DCM-4796
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
