Used Kawasaki Model: FS-060L 60 Kilogram Six Axis Foundry Rated Industrial Robot
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Kawasaki |
| Model | FS-060L |
| Size | 60 Kilogram |
| Inventory Number | DCM-4791 |
Kawasaki - FS-060L 60 Kilogram Six Axis Foundry Rated Industrial Robot, D32F D001 with Type D+ Control Controls
Questions? Call (847) 360-9170 and mention DCM-4791.
Features & Accessories

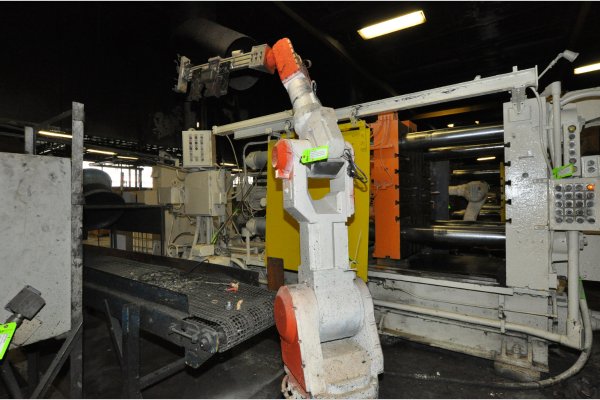

- Available as a complete die cast cell including: Die Cast Machine, Rimrock 405 ladle, Cal-Miser natural gas low energy aluminum holding furnace, Kawasaki FS-060L six axis robot for die spray and part extract. Premier Die Casting Company Die Cast Cell #1
- Equipped with a Parts Gripper for Gripping Die Casting Biscuit and also equipped with a Die Lube Spray Package
- Fast maneuverability
- Heavy Payload Capability
- Renowned Kawasaki Parts and Service
- Compact Arm Design
Item Specifications for DCM-4791
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 132 pounds | 60 kg |
| Horizontal Reach: | 43.3 inches | 1.102 meters |
| Vertical Reach: | 56.3 inches | 1.432 meters |
| Axis 1 Rotation Motion: | +/- 160 degrees - 240 °/second | +/- 160 degrees - 240 °/second |
| Axis 2 Arm Out-in: | +140/-105 degrees - 200 °/second | +140/-105 degrees - 200 °/second |
| Axis 3 Arm Up-down: | +120/-155 degrees - 250 °/second | +120/-155 degrees - 250 °/second |
| Axis 4 Wrist Swivel: | +/- 270 degrees - 430 °/second | +/- 270 degrees - 430 °/second |
| Axis 5 Wrist Bend: | +/- 145 degrees - 430 °/second | +/- 145 degrees - 430 °/second |
| Axis 6 Wrist Twist: | +/- 360 degrees - 760°/second | +/- 360 degrees - 760°/second |
| Power: | 460/3/60 | 460/3/60 |
| Approximate Machine Weight: | 393.7 pounds | 165 KG |
Video
Description
Used, Kawasaki Model FS-060L 60 Kilogram Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Equipped with a Parts Gripper for Gripping Die Casting Biscuit and also equipped with a Die Lube Spray Package, Fast maneuverability, Heavy Payload Capability, Renowned Kawasaki Parts and Service, Compact Arm Design, D32F D001 with Type D+ Control controls, second Hand, DCM-4791
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
