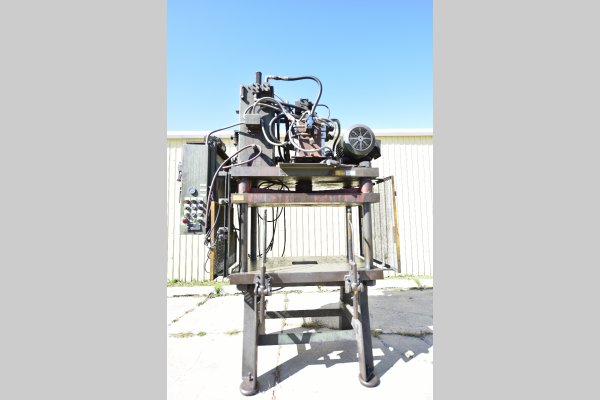

Used Birch Trim Press Model: BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Birch Trim Press |
| Model | BMC-30-A |
| Size | 30 Tons |
| Inventory Number | DCM-4781 |
Birch Trim Press - BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley MicroLogix 1000 Solid Stale Controls Controls
Questions? Call (847) 360-9170 and mention DCM-4781.
Features & Accessories
- Air Safety Ratchet
- Drill &Tapped Base and Moving Platen
- Dual Pull Out Bars
- Top Mounted Hydraulics
- Allen Bradley MicroLogix 1000 Solid State Controls
- One (1) auxiliary hydraulic Side Core/Side-Punch Circuit
Item Specifications for DCM-4781
| US | Metric | |
| Pressing Tonnage: | 30 tons | 27.22 metric tron |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88.9 mm |
| Daylight: | 28 inches | 711 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 4 inches | 101 mm |
| Clearance between Tie Bars (Left to Right): | 48 inches | 1219 mm |
| Clearance between Tie Bars (Front to Back): | 24 inches | 609 mm |
| Bed Size (Left to Right by Front to Back): | 60 x 35.5 inches | 1524 x 901.7 mm |
| Cut out Size in Bed: (L/R x F/B): | 12 x 7 inches | 304 x 177 mm |
| Overall Size (L x w x H): | 84 x 52 x 139 inches | 2133 x 1320 x 3530 mm |
Documents
- Birch-BMC-30-Ton-Electrical-DrawingPDF · 451 KB
- Birch-BMC-30-Ton-Electrical-Schematic-DrawingPDF · 88 KB
- Birch-BMC-30-Ton-Program-LadderPDF · 386 KB
- Birch-BMC-30-Ton-Schematic-DrawingPDF · 272 KB
Description
Used, Birch Trim Press Model BMC-30-A 30 Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Drill &Tapped Base and Moving Platen, Dual Pull Out Bars, Top Mounted Hydraulics, Allen Bradley MicroLogix 1000 Solid State Controls, One (1) auxiliary hydraulic Side Core/Side-Punch Circuit, Allen Bradley MicroLogix 1000 Solid Stale Controls controls, second Hand, DCM-4781
