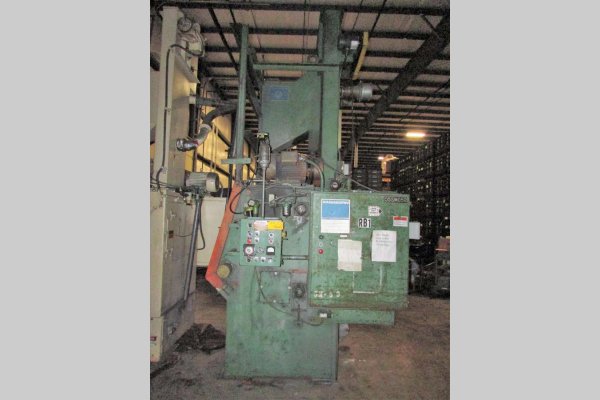

Used Pangborn Model: 6GN-3R 6 Cubic Feet Batch Type Rubber Belt Tumble Blast Abrasive Shot Blast & Peening Machine
1 / 15| Status | Sold |
|---|---|
| Manufacturer | Pangborn |
| Model | 6GN-3R |
| Size | 6 Cubic Feet |
| Inventory Number | DCM-4697 |
Pangborn - 6GN-3R 6 Cubic Feet Batch Type Rubber Belt Tumble Blast Abrasive Shot Blast & Peening Machine, Controls
View Available Tumble Blast Machines
Questions? Call (847) 360-9170 and mention DCM-4697.
Features & Accessories
- Rubber belt barrel type tumble blast machine design
- Blast Wheel Housing features Long Life Replaceable Manganese Steel Liners
Item Specifications for DCM-4697
| US | Metric | |
| Machine Design/Type: | Batch Type Tumble Blast | Batch Type Tumble Blast |
| Blast Chamber Capacity: | 6 cubic feet | 1.8 cubic meters |
| Drum Diameter | 2 feet 5 inches | 737 mm |
| Drum Length | 3 feet 1 inch | 940 mm |
| Maximum Work Piece | 75 pounds | 34 kg |
| Load Capacity | 960 pounds | 436 kg |
| Rotoblast Wheels | (1) 15 hp | (11.2 kw) direct drive |
| Maximum Abrasive Flow | 17,000 lbs/hr | 7,711 kg/hr |
| Abrasive Velocity (Max) | 295 feet/sec | 74.0 m/sec @ 3,000 rpm |
| Work Conveyor | Multi-ply rubber; 1 hp | .7 kw drive |
| Dust Collector Volume | 1,000 cfm | 28.3 cubic meters/min |
| Shipping Weight | 4,500 pounds | 2,041 kg |
Description
Used, Pangborn Model 6GN-3R 6 Cubic Feet Batch Type Rubber Belt Tumble Blast Abrasive Shot Blast & Peening Machine For_Sale, Features Include: Rubber belt barrel type tumble blast machine design, Blast Wheel Housing features Long Life Replaceable Manganese Steel Liners, controls, second Hand, DCM-4697
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
