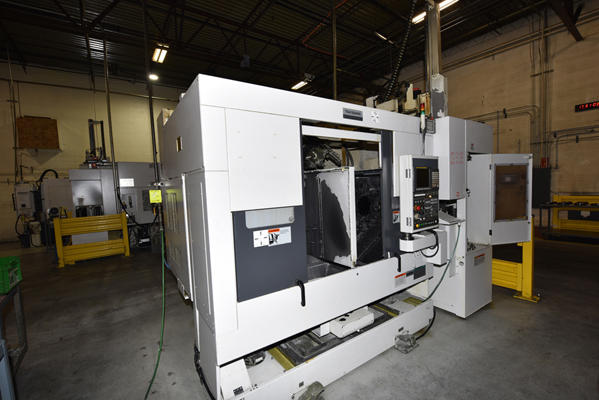

Used Takisawa Model: TT-2600G 2600 mm Parallel Front Facing Twin Spindle CNC Lathe
1 / 13| Status | Sold |
|---|---|
| Manufacturer | Takisawa |
| Model | TT-2600G |
| Size | 2600 mm |
| Inventory Number | DCM-4637 |
Takisawa - TT-2600G 2600 mm Parallel Front Facing Twin Spindle CNC Lathe, Fanuc Series Oi-TD CNC Controls
Questions? Call (847) 360-9170 and mention DCM-4637.
Features & Accessories
- Including: Takisawa Integrated High Speed 3-axis Linear Parts Handling Robot with Swivel Head for fully Automated loading/repositioning/Unloading Parts and 14 station parts pallets. NEW IN 2016
- Integrated Pallet System & Loader Maximizes throughput and minimizes man hours
- Rigid Box Way Construction Design on both X and Z Axis
- Rigid wide rectangular slideways in the X and Z-axes permits stable machining with high accuracy over a long period of time
- Features Fanuc Series Oi-TD CNC Controls
- In Process Auto-Gauging with Direct Feedback to CNC control for Dimension Compensation
Item Specifications for DCM-4637
| US | Metric | |
| Max. Turning Diameter/Length: | 11.42 x 8.425 inches | 290 x 214 mm |
| Spindle Speed: | 4,000 RPM | 4,000 RPM |
| Chuck Size: | 10 inch | 250 mm |
| Spindle Nose: | A2-6 | A2-6 |
| Spindle motor: | 20/14.7 hp | 15 /11 kW |
| Number of tool stations (per spindle): | 10 & 10 | 10 & 10 |
| Rapid Traverse Rate: | X - 944/Z = 944 inches per minute | X= 24000/Z=24000 mm per minute |
| Loader Maximum Part Diameter/Length/Weight: | 7.87 x 4.724 inches x 17.6 pounds (35.2 pounds combined) | 200 mm x 120 mm x 8 kg (16 kg combined) |
| Work Piece Feeder, Number of Pallets: | 14 | 14 |
| Maximum weight per pallet: | 154 pounds | 70 kg |
| Maximum part stack height: | 15.74 inches | 400 mm |
Documents
- Takisawa Manual 1 of 12PDF · 7.9 MB
- Takisawa Manual 2 of 12PDF · 9.7 MB
- Takisawa Manual 3 of 12PDF · 5.7 MB
- Takisawa Manual 4 of 12PDF · 6 MB
- Takisawa Manual 5 of 12PDF · 6.2 MB
- Takisawa Manual 6 of 12PDF · 9.3 MB
- Takisawa Manual 7 of 12PDF · 6.6 MB
- Takisawa Manual 8 of 12PDF · 7.6 MB
- Takisawa Manual 9 of 12PDF · 6.1 MB
- Takisawa Manual 10 of 12PDF · 3.3 MB
- Takisawa Manual 11 of 12PDF · 4.6 MB
- Takisawa Manual 12 of 12PDF · 12.6 MB
Description
Used, Takisawa Model TT-2600G 2600 mm Parallel Front Facing Twin Spindle CNC Lathe For_Sale, Features Include: Integrated Pallet System & Loader Maximizes throughput and minimizes man hours, Rigid Box Way Construction Design on both X and Z Axis, Rigid wide rectangular slideways in the X and Z-axes permits stable machining with high accuracy over a long period of time, Features Fanuc Series Oi-TD CNC Controls, In Process Auto-Gauging with Direct Feedback to CNC control for Dimension Compensation, Fanuc Series Oi-TD CNC controls, second Hand, DCM-4637
