Used Rimrock Model: 305 70 Inch Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 2| Status | Sold |
|---|---|
| Manufacturer | Rimrock |
| Model | 305 |
| Size | 70 Inch |
| Inventory Number | DCM-4474 |
Rimrock - 305 70 Inch Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Rimrock Epic Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-4474.
Features & Accessories

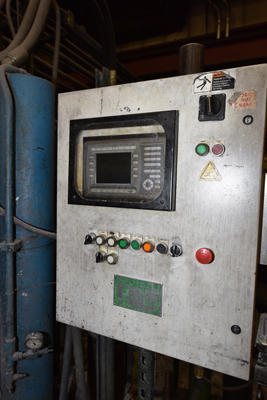

- Equipped with Rimrock Epic Controls
- Compact Size - Small footprint on floor
- Rimrock Epic Controls
- Ladle Can Work on either operator or helper side of die cast machine
- Common Control System Saves Space - Easy to Use
Item Specifications for DCM-4474
| US | Metric | |
| Ladle Stroke: | 40 to 70 Inches | 1016 to 1778 mm |
| Pour Capacity (Aluminum): | 50 pounds maximum | 22.7 kg maximum |
| Power Requirements: | 120/1/60 | 120/1/60 |
| Pour Capacity: | 50 pounds maximum | 22.7 kg maximum |
| Draw-down: | 17 inches maximum | 431 mm maximum |
| Cycle Speed: | Adjustable | Adjustable |
| Pour Contour: | Adjustable 3 speed and 3 positions | Adjustable 3 speed and 3 positions |
| Maximum tilt of unit: | +/- 6 degrees | +/- 6 degrees |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Rimrock Model 305 70 Inch Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Compact Size - Small footprint on floor, Rimrock Epic Controls, Ladle Can Work on either operator or helper side of die cast machine, Common Control System Saves Space - Easy to Use, Rimrock Epic controls, second Hand, DCM-4474
