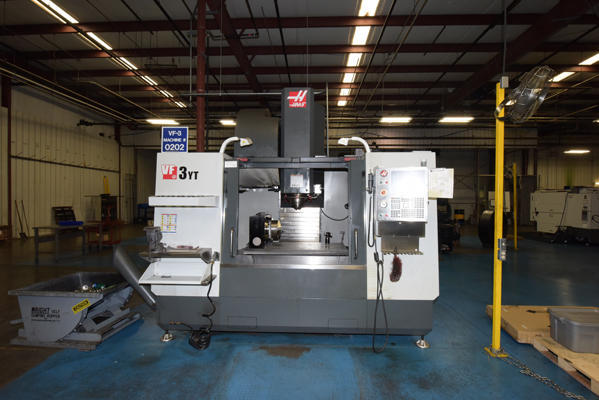

Used Haas Model: VF-3YT/50 VF-3YT-50_52_x_23 inch Four Axis CNC Vertical Machining Centers (VMC)
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Haas |
| Model | VF-3YT/50 |
| Size | VF-3YT-50_52_x_23 inch |
| Inventory Number | DCM-4401 |
Haas - VF-3YT/50 VF-3YT-50_52_x_23 inch Four Axis CNC Vertical Machining Centers (VMC), Haas CNC Controls
View Available CNC Vertical Machining Centers
Questions? Call (847) 360-9170 and mention DCM-4401.
Features & Accessories
- New in 2013 - Very low Hours
- Auger Type Chip Conveyor
- 2-Speed Geared Head
- 15 Inch Color LCD Monitor
- 1 GB Program Memory
- Rigid Tapping
- 55 Gallon Coolant Capacity with Flood Coolant System
Item Specifications for DCM-4401
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 30 hp/7,500 rp | 22.4 kw/7,500 rpm |
| Spindle Nose to Table Maximum/Minimum: | 32.9/7.9 inches | 836/201 mm |
| Spindle Torque: | 340 ft-lb @ 700 rpm | 460 Nm @ 700 rpm |
| Spindle Taper: | CAT 50 | CAT 50 |
| Spindle Drive System: | 2-Speed Geared Head | 2-Speed Geared Head |
| Table Size/Maximum Weight: | 52 x 23 inches/4,000 pounds | 1321 x 584 mm/1814 kg |
| Automatic Tool Changer (ATC) Capacity: | 30 plus 1 | 30 plus 1 |
| X-Axis Travel & Feedrate: | 40 inch/710 inches per minute | 1016 mm/18 meters per minute |
| Y-Axis Travel & Feedrate: | 26 inch/710 inches per minute | 660 mm/18 meters per minute |
| Z-Axis Travel & Feedrate: | 25 inches/710 inches per minute | 635 mm/18 meters per minute |
| Coolant Capacity: | 55 gallon | 208 liter |
| Overall Dimensions (L x D x H): | 161 x 115 x 121 inches | 4089 x 2921 x 3073 mm |
Documents
- Haas VF-3YT_50 _ Haas Automation, Inc. _ CNC Machine Tools SpecificationsPDF · 1.1 MB
- VF-3YT50 DimensionsPDF · 842 KB
- Haas VF-3YT_50 Shipping DimensionsPDF · 172 KB
Description
Used, Haas Model VF-3YT/50 VF-3YT-50_52_x_23 inch Four Axis CNC Vertical Machining Centers (VMC) For_Sale, Features Include: Auger Type Chip Conveyor, 2-Speed Geared Head, 15 Inch Color LCD Monitor, 1 GB Program Memory, Rigid Tapping, 55 Gallon Coolant Capacity with Flood Coolant System, Haas CNC controls, second Hand, DCM-4401
