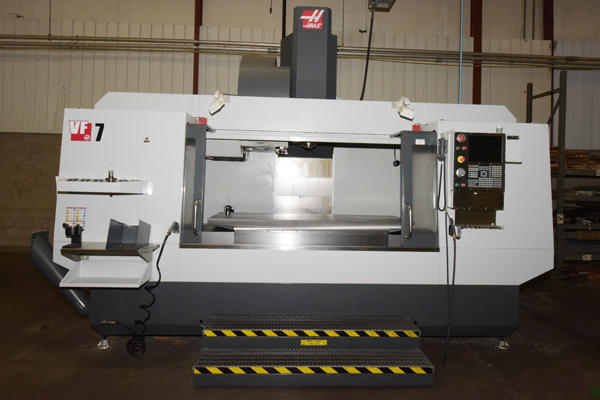

Used Haas Model: VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC)
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Haas |
| Model | VF-7/50 |
| Size | VF-7-50_84_x_28 inch |
| Inventory Number | DCM-4399 |
Haas - VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC), Haas CNC Controls
View Available CNC Vertical Machining Centers
Questions? Call (847) 360-9170 and mention DCM-4399.
Features & Accessories
- New in 2015 - Very low Hours
- Auger Type Chip Conveyor
- Two Speed Geared Head Spindle Drive
- 15 Inch Color LCD Monitor
- 1 GB Program Memory
- Rigid Tapping
- 95 Gallon Coolant Capacity with Flood Coolant System
Item Specifications for DCM-4399
| US | Metric | |
| Spindle Power/Maximum Spindle Speed: | 30 hp/7,500 rpm | 22.4 kw/7,500 rpm |
| Spindle Nose to Table Maximum/Minimum: | 35/5 inches | 889/127 mm |
| Spindle Torque: | 340 ft-lb @ 700 rpm | 460 Nm @ 700 rpm |
| Spindle Taper: | CAT 50 | CAT 50 |
| Spindle Drive System: | Two Speed Geared Head | Two Speed Geared Head |
| Table Size/Maximum Weight: | 84 x 28 inches/4,000 pounds | 2134 x 711 mm/1814 kg |
| Automatic Tool Changer (ATC) Capacity: | 30+1 | 30+1 |
| X-Axis Travel & Feedrate: | 84 inch/600 inches per minute | 2134 mm/15.2 meters per minute |
| Y-Axis Travel & Feedrate: | 32 inch/600 inches per minute | 813 mm/15.2 meters per minute |
| Z-Axis Travel & Feedrate: | 30 inches/600 inches per minute | 762 mm/15.2 meters per minute |
| Coolant Capacity: | 95 gallon | 360 liter |
| Overall Dimensions (L x D x H): | 201 x 112 x 112 inches | 5105 x 2845 x 3073 mm |
Documents
- Haas VF-7_50 _ Haas Automation, Inc. _ CNC Machine Tools SpecificationsPDF · 1 MB
- VF-7-50 DimensionsPDF · 310 KB
- VF-7-50 Shipping InformationPDF · 176 KB
Description
Used, Haas Model VF-7/50 VF-7-50_84_x_28 inch Four Axis CNC Vertical Machining Centers (VMC) For_Sale, Features Include: Auger Type Chip Conveyor, Two Speed Geared Head Spindle Drive, 15 Inch Color LCD Monitor, 1 GB Program Memory, Rigid Tapping, 95 Gallon Coolant Capacity with Flood Coolant System, Haas CNC controls, second Hand, DCM-4399
