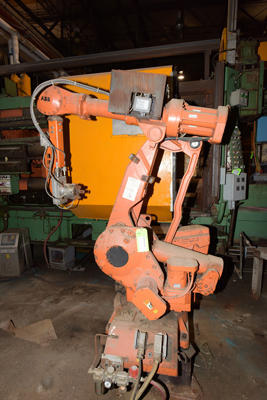

Used ABB Model: IRB 4400/60 60 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor/Gripper & Die Spray Lubrication Package
1 / 8| Status | Sold |
|---|---|
| Manufacturer | ABB |
| Model | IRB 4400/60 |
| Size | 60 Kilogram |
| Inventory Number | DCM-4211 |
ABB - IRB 4400/60 60 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor/Gripper & Die Spray Lubrication Package, S4C Controls
Questions? Call (847) 360-9170 and mention DCM-4211.
Features & Accessories
- Compact Arm Design
- Fast maneuverability
- Heavy Payload Capability
- Renowned ABB Parts and Service
Item Specifications for DCM-4211
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 132 pounds | 60 kg |
| Reach: | 77.2 inches | 1.96 meter |
| Axis 1 Rotation Motion: | +/- 165 Degrees | +/- 165 Degrees |
| Axis 2 Arm Motion: | +96 to -70 Degrees | +96 to -70 Degrees |
| Axis 3 Arm Motion: | +65 to -60 Degrees | +65 to -60 Degrees |
| Axis 4 Wrist Motion: | +/- 200 Degrees | +/- 200 Degrees |
| Axis 5 Bend Motion: | +/- 120 Degrees | +/- 120 Degrees |
| Axis 6 Rotation Motion: | +/- 400 Degrees | +/- 400 Degrees |
| Power Requirements: | 475/3/60 | 475/3/60 |
| Approximate Machine Weight: | 2,293 pounds | 1040 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM II-900-A Cold Chamber Aluminum Die Casting Machine DCM-4209
- Sold – Metal Mechanics 40 Ton Four-Post Hydraulic Trim Press DCM-4210
- Sold – Wollin PSM 3 Linear Die Sprayer DCM-4212
- Sold – Advance Products SL-1200-H Multi Link Automatic Ladle with Mitsubishi Controls DCM-4213
- Sold – Advance Products Model: SL 1200 HS 25 Pound Capacity Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-4364
Description
Used, ABB Model IRB 4400/60 60 Kilogram Six Axis Foundry Rated Industrial Robot with Extractor/Gripper & Die Spray Lubrication Package For_Sale, Features Include: Compact Arm Design, Fast maneuverability, Heavy Payload Capability, Renowned ABB Parts and Service, S4C controls, second Hand, DCM-4211
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
