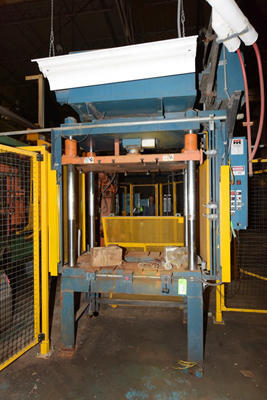

Used Metal Mechanics Model: 40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | 40 |
| Size | 40 Ton |
| Inventory Number | DCM-4210 |
Metal Mechanics - 40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 5/03 Solid State Controls Controls
Questions? Call (847) 360-9170 and mention DCM-4210.
Features & Accessories
- Air Safety Ratchet and Light Curtains
- Dual Soft-Touch Operation Buttons
- T-Slotted Platens - Moving & Stationary Platens
- Two (2) auxiliary hydraulic side core punch circuits
- Allen Bradley SLC Solid State Controls
- Full Electrical and Hydraulic Documents including Schematics
Item Specifications for DCM-4210
| US | Metric | |
| Model: | 40 | 40 |
| Pressing Tonnage: | 40 tons | 36.3 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3.5 inches | 88.9 mm |
| Daylight: | 44 inches | 1,117 mm |
| Stroke: | 24 inches | 609 mm |
| Shut Height: | 20 inches | 508 mm |
| Clearance between Tie Bars (Left to Right): | 48 inches | 1,219 mm |
| Clearance between Tie Bars (Front to Back): | 25 inches | 635 mm |
| Bed Size (Left to Right by Front to Back): | 58 x 35 inches | 1,473 x 889 mm |
| Cut out Size in Bed: | 18 x 12 Inch | 457 x 304 mm |
| Approximate Footprint (L/R x F/B): | 84 x 72 inches | 2133.6 x 1828.8 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – HPM II-900-A Cold Chamber Aluminum Die Casting Machine DCM-4209
- Sold – ABB 4400 Six Axis Foundry Robot for Parts Extracting DCM-4211
- Sold – Wollin PSM 3 High Speed Linear Die Sprayer DCM-4212
- Sold – Advance Products Model: SL 1200 H 1200 SL Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-4213
- Sold – Advance Products SL-1200-H Multi Link Automatic Ladle with Mitsubishi Controls DCM-4364
Description
Used, Metal Mechanics Model 40 40 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet and Light Curtains, Dual Soft-Touch Operation Buttons, T-Slotted Platens - Moving & Stationary Platens, Two (2) auxiliary hydraulic side core punch circuits, Allen Bradley SLC Solid State Controls, Full Electrical and Hydraulic Documents including Schematics, Allen Bradley SLC 5/03 Solid State Controls controls, second Hand, DCM-4210
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
