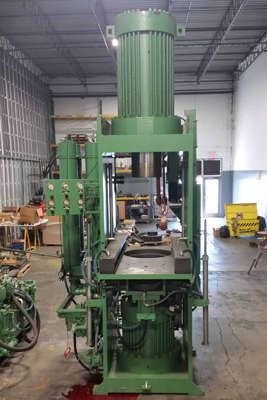

Used THT Model: 300 Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine
1 / 14| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | THT |
| Size | 300 Ton |
| Inventory Number | DCM-4045 |
THT - 300 Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine, Controls
View Available Squeeze Cast Machines
Questions? Call (847) 360-9170 and mention DCM-4045.
Item Specifications for DCM-4045
| US | Metric | |
| Clamping Force: | 300 tons | 272 tons |
| Shot Cylinder Bore Size | 20 inches | 508 mm |
| Shot Cylinder Stroke: | 7 inches | 178 mm |
| Maximum Shot Sleeve Size (DIA): | 16 inches | 406 mm |
| Maximum Pour Volume w/16” Sleeve: | 1000 cublic inch | 48 kg |
| Maximum Cast Weight w/16” Sleeve: | 80 pounds | 36 kg |
| Maximum Shot Speed (DRY): | 40 inches per second | 1 mm per second |
| Clamp Cylinder Bore Size: | 20 inches | 508 mm |
| Clamp Cylinder Stroke: | 28 inches | 711 mm |
| Maximum Clamp Speed: | 2 inches per second | 51 mm per second |
| Upper & Lower Die Ejection Force: | 28 tons | 25.4 tons |
| Upper & Lower Die Ejection Stroke: | 2 & 3 inches | 51 & 76 mm |
Video
Description
Used, THT Model 300 Ton Vertical Cold Chamber Aluminum High Pressure Squeeze Cast or Semi-Solid Die Casting Machine For_Sale, Features Include:, controls, second Hand, DCM-4045
