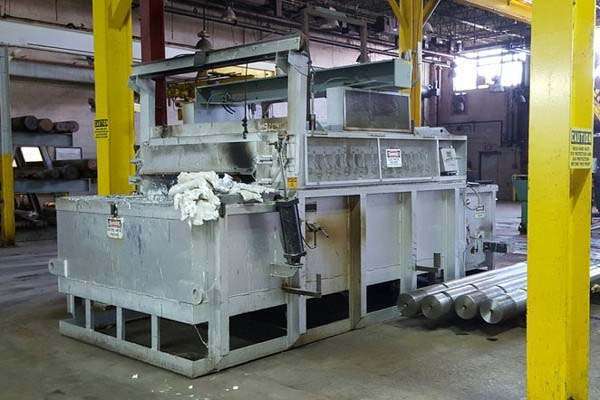

Used FW Schaefer Model: FWS-1200/HR - Glowbar 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace
1 / 8| Status | Sold |
|---|---|
| Manufacturer | FW Schaefer |
| Model | FWS-1200/HR - Glowbar |
| Size | 1200 Pounds/Hour |
| Inventory Number | DCM-3808 |
FW Schaefer - FWS-1200/HR - Glowbar 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace, Honeywell Controls
View Available Glow Bar Furnaces
Questions? Call (847) 360-9170 and mention DCM-3808.
Features & Accessories
- Glow-Bar Design For Clean Metal Applications
- Pneumatic Clean-out Door
- Dedicated Dip Out Well with Independent Immersion Heater and cover
- Integral Degassing Well between furnace and Dip-out well
- Integral Filter Well
- Ideal for Ultra Clean Metal Applications such as Electric Motor Rotor, Automotive Aluminum Wheels, Automotive Steering, Brake and Suspensions Components
Item Specifications for DCM-3808
| US | Metric | |
| Melt Rate: | 1,200 Pounds Per hour | 545 Kg per hour |
| Bath Capacity: | 13,980 Pounds | 6341 Kg |
| Furnace Type: | Stationary Glow-Bar | Stationary Glow-Bar |
| Energy Source | Electric | Electric |
| Power Requirements: | 480/3/60/325 KW | 480/3/60/325 KW |
| Number of Taps: | 2 | 2 |
| Distance floor to top of Well: | 53 inches | 1,346 mm |
| Charge Well Size: | 24 x 60 inches | 609 x 1,524 mm |
| Dip-Out Well Size: | 31 x 24 inches | 787 x 609 mm |
| Overall Dimensions (L x W x H): | 221 x 124 x 109 inches | 5.62 x 3.15 x 2.77 meters |
Documents
Description
Used, FW Schaefer Model FWS-1200/HR - Glowbar 1200 Pounds/Hour Electric Glow Bar Reverb Type Wet Bath Stationary Aluminum Melting Furnace For_Sale, Features Include: Glow-Bar Design For Clean Metal Applications, Pneumatic Clean-out Door, Dedicated Dip Out Well with Independent Immersion Heater and cover, Integral Degassing Well between furnace and Dip-out well, Integral Filter Well, Ideal for Ultra Clean Metal Applications such as Electric Motor Rotor, Automotive Aluminum Wheels, Automotive Steering, Brake and Suspensions Components, Honeywell controls, second Hand, DCM-3808
