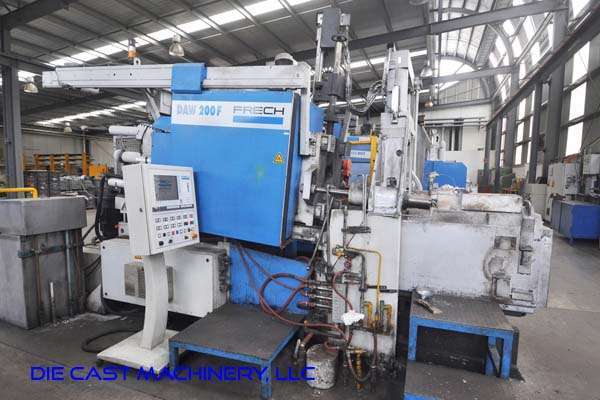

Used Frech Model: DAW 200 F RC 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | DAW 200 F RC |
| Size | 220 Metric Ton |
| Inventory Number | DCM-3290 |
Frech - DAW 200 F RC 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Frech Datadialog Controls
View Available Hot Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-3290.
Features & Accessories
- Factory Designed for Hot Chamber Magnesium and Zinc Capability - Only 19,131 Operating Hours
- Machine is factory designed to be fully capable in both Zinc and Magnesium - is equipped with two furnaces One (1) ML 200/150 for Magnesium and one (1) ZC 200/250 for Zinc
- Cell also includes: ABB IRB 2400 Foundry Plus robot with S4CPlus M2000 controls, Four Post Hydrauilc Trim Press, Frech High Speed Linear Die Spray System, Gooseneck scrap return conveyor
- Central Electric Powered Motorized Die Height Adjustment System with Frech Electronic Tie Bar Tonnage Strain Gauge System
- Frech Fully Proportional Hydraulic System for Injection and Die Close Circuits
- Frech Datadialog RC Controls with Color Flat Panel HMI monitor
- Auxiliary Hydraulic Side Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door
Item Specifications for DCM-3290
| US | Metric | |
| Clamping Force | 243 tons | 220 tons |
| Die Thickness (Minimum - Maximum) | 9.84 to 23.62 inches | 250 to 600 mm |
| Platen Dimensions (Horizontal x Vertical) | 29.72 x 29.72 inches | 755 x 755 mm |
| Clearance Between Tie Bars | 19.68 x 19.68 inches | 500 x 500 mm |
| Tie Bar Diameter | 3.34 inches | 85 mm |
| Closing Stroke | 16.93 inches | 430 mm |
| Maximum Injection Force | 14.61 tons | 130 KN |
| Injection Plunger Diameter | 2.75, 3.14, and 3.54 inches | 70, 80, and 90 mm |
| Injection Positions: | center to -3.93 inches | center to -100 mm |
| Ejector Stroke - Force | 3.93 inches - 12.36 tons | 100 mm - 11 tons |
| Dry Cycles per Hour (DIN 24480) | 780 | 780 |
| Weight of Machine | 17,600 pounds | 8,000 KG |
Documents
- Frech Daw 200 DrawingPDF · 199 KB
- Trim Press Specifications For DAW 200 FPDF · 168 KB
Description
Used, Frech Model DAW 200 F RC 220 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Machine is factory designed to be fully capable in both Zinc and Magnesium - is equipped with two furnaces One (1) ML 200/150 for Magnesium and one (1) ZC 200/250 for Zinc, Cell also includes: ABB IRB 2400 Foundry Plus robot with S4CPlus M2000 controls, Four Post Hydrauilc Trim Press, Frech High Speed Linear Die Spray System, Gooseneck scrap return conveyor, Central Electric Powered Motorized Die Height Adjustment System with Frech Electronic Tie Bar Tonnage Strain Gauge System, Frech Fully Proportional Hydraulic System for Injection and Die Close Circuits, Frech Datadialog RC Controls with Color Flat Panel HMI monitor, Auxiliary Hydraulic Side Core Circuits, Power Operator Side Safety Door and Manual Helper Side Safety Door, Frech Datadialog controls, second Hand, DCM-3290
