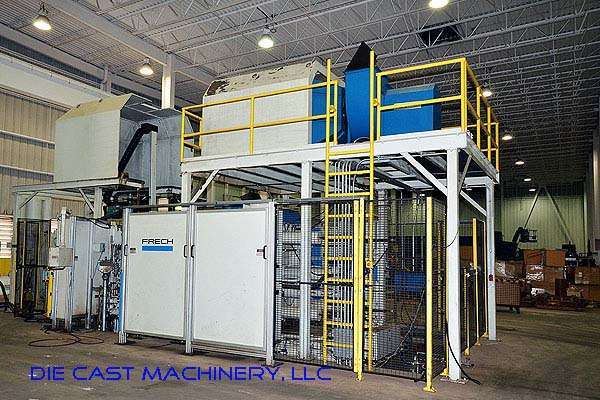

Used Frech Model: DAK 1100-133-L RC 12100 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Frech |
| Model | DAK 1100-133-L RC |
| Size | 12100 kN |
| Inventory Number | DCM-2795 |
Frech - DAK 1100-133-L RC 12100 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Frech Data Controls
View Available Cold Chamber Semi-Solid
Questions? Call (847) 360-9170 and mention DCM-2795.
Features & Accessories
- New in 2006
- Frech RC Real-Time Control of Die Filling
- Rimrock Model 510 two axis linear die sprayer with dual lube capabilities
- MPH low energy electric holding furnace with Thermaltech roof conversion
- ABB 6600 Foundry Grade Robot with end effector and program for ladling aluminum
Item Specifications for DCM-2795
| US | Metric | |
| Clamping (Locking) Force: | 1360 tons | 12,100 kN |
| Platen Size: | 68.11 x 68.11 inches | 1730 x 1730 mm |
| Tie Bar Diameter: | 8.070 inches | 205 mm |
| Space Between Tie Bars: | 45.28 inches | 1150 mm |
| Shot Position (adjustable): | Center to -16.5 inches | 0 - 420 mm |
| Die Stroke (minimum - maximum): | 23.62 - 29.53 inches | 600 - 750 mm |
| Die Thickness (minimum - maximum): | 15.7 - 47.24 inches | 400 - 1200 |
| Ejector Platen Stroke: | 7.99 inches | 230 mm |
| Casting Volume: | 82.93 - 469.45 cubic inches | 1359 - 7693 cm3 |
| Casting Injection Force: | 91 - 149 tons | 811 - 1330 kN |
| Approximate Weight: | 116,600 pounds | 53,000 KG |
| Approximate Machine Size: | 31.9 x 12.8 x 12 Feet | 9730 x 3900 x 3670 |
Video
Description
Used, Frech Model DAK 1100-133-L RC 12100 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Frech RC Real-Time Control of Die Filling, Rimrock Model 510 two axis linear die sprayer with dual lube capabilities, MPH low energy electric holding furnace with Thermaltech roof conversion, ABB 6600 Foundry Grade Robot with end effector and program for ladling aluminum, Frech Data controls, second Hand, DCM-2795
