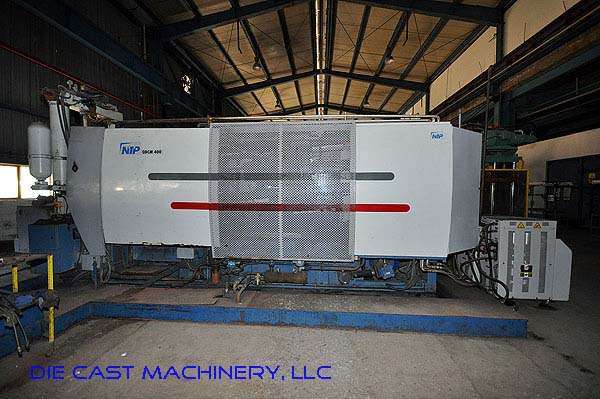

Used NTP Model: WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine
1 / 14| Status | Sold |
|---|---|
| Manufacturer | NTP |
| Model | WEM H 400 M |
| Size | 4000 kN |
| Inventory Number | DCM-2716 |
NTP - WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine, Siemens S-7 PLC Controls
View Available Hot Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-2716.
Features & Accessories
- Nine Identical Machines Available
- Siemens S-7 PLC Controls (Solid State, Free Programmable)
- Hydraulic Bumper Plate Ejection
- Electric Motorized Die Height
- Hydraulic Sprue Break
- Fully Proportional Hydraulics
- Was Running Steering Wheel Armatures and Electronic Components
Item Specifications for DCM-2716
| US | Metric | |
| Locking Force: | 449.6 tons | 4000 kN |
| Moving Platen Stroke: | 21.6 inches | 550 mm |
| Platen Size: | 37.8 x 37.8 inches | 960 x 960 mm |
| Distance Between Tie Bars: | 24.4 x 24.4 inches | 620 x 620 mm |
| Tie Bar Diameter: | 5.1 inches | 130 mm |
| Die Thickness (min - max): | 11.8 - 29.5 inches | 300 - 750 mm |
| Injection Force: | 20.4 tons | 182 kN |
| Injection Stroke: | 9 inches | 230 mm |
| Plunger Diameters: | 3.1, 3.9, 4.3 inches | 80, 100, 110 mm |
| Machine Weight: | 38,580 lbs | 17,500 kg |
| Machine Size: | 24.6 x 7.8 x 9.8 feet | 7.5 x 2.4 x 3 meters |
Video
Description
Used, NTP Model WEM H 400 M 4000 kN Horizontal Hot Chamber Magnesium High Pressure Die Casting Machine For_Sale, Features Include: Siemens S-7 PLC Controls (Solid State, Free Programmable), Hydraulic Bumper Plate Ejection, Electric Motorized Die Height, Hydraulic Sprue Break, Fully Proportional Hydraulics, Was Running Steering Wheel Armatures and Electronic Components, Siemens S-7 PLC controls, second Hand, DCM-2716
