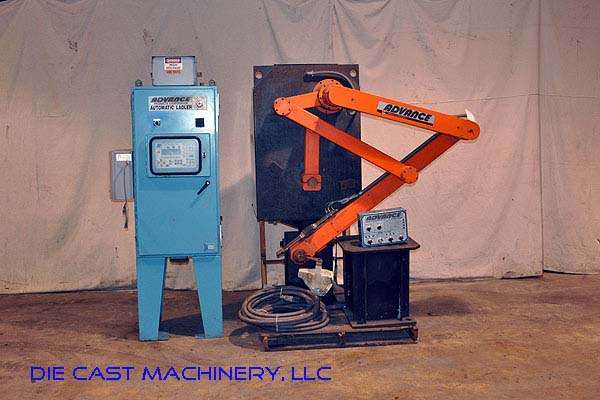

Used Advance Products Model: SL-2000 2000 Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | SL-2000 |
| Size | 2000 |
| Inventory Number | DCM-2638 |
Advance Products - SL-2000 2000 Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Atlas Copco Controls
View Available Automation (Die Cast)
Questions? Call (847) 360-9170 and mention DCM-2638.
Features & Accessories
- Control Version: Altas Copco
- Auto Teach Mode
- Advance Forward on Pour Command - Pour Forward
- Excellent Adjustability
Item Specifications for DCM-2638
| US | Metric | |
| Total Stroke (Maximum): | 104.8 inches | 266 cm |
| Forward Stroke (Maximum): | 63 inches | 160 cm |
| Reach Back: | 41.8 inches | 106 cm |
| Pour Capacity (Aluminum): | 50 pounds | 23 kg |
| Cycle Speed: | Adjustable | Adjustable |
| Power Requirements | 480/3/60 10 amp | 480/3/60 10 amp |
| Motor Drive: | Servo | Servo |
| Dimensions - Control Assembly: | 39.25 x 31.375 x 11 inches | 997 x 797 x 279 mm |
| Dimensions - Operators Panel: | 9 x 31.375 x 5 inches | 228 x 31.975 x 127 mm |
| Weight Mechanism: | 1,300 pounds | 589 kg |
| Weight Control Assembly: | 250 pounds | 113 kg |
Video
Description
Used, Advance Products Model SL-2000 2000 Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Auto Teach Mode, Advance Forward on Pour Command - Pour Forward, Excellent Adjustability, Atlas Copco controls, second Hand, DCM-2638
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
