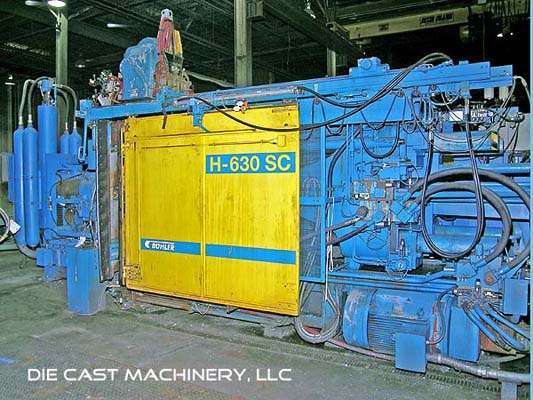

Used Buhler Model: H-630 SC 7250 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | H-630 SC |
| Size | 7250 kN |
| Inventory Number | DCM-1864 |
Buhler - H-630 SC 7250 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Buhler Datacess-SC Controls
View Available Cold Chamber Squeeze Cast
Questions? Call (847) 360-9170 and mention DCM-1864.
Features & Accessories
- Buhler Datacess-SC control with Lancast software package
- Top Helper Side Automatic Tie Bar Puller
- Buhler Pickmat Extractor
Item Specifications for DCM-1864
| US | Metric | |
| Locking Force | 814 tons | 7250 kn |
| Tie Bar Diameter | 5.9 inches | 150 mm |
| Clearance Between Tie Bars | 30.7 x 30.7 inches | 780 x 780 mm |
| Die Thickness (minimum - maximum) | 11.8 inches | 300 mm |
| Die Stroke (minimum - maximum) | 30.7 inches | 780 mm |
| Moving Platen Size | 47.6 x 47.6 inches | 1210 x 1210 mm |
| Shot Positions | Inserted - 8 positions | Inserted - 8 Positions |
| Shot Stroke | 22.8 inches | 580 mm |
| Power | 480/3/60 | 480/3/60 |
| Machine Size | 29.5 x 9.5 feet | 9 x 2.9 m |
| Machine Weight | 62,700 pounds | 28,500 kg |
Video
Description
Used, Buhler Model H-630 SC 7250 kN Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Buhler Datacess-SC control with Lancast software package, Top Helper Side Automatic Tie Bar Puller, Buhler Pickmat Extractor, Buhler Datacess-SC controls, second Hand, DCM-1864
