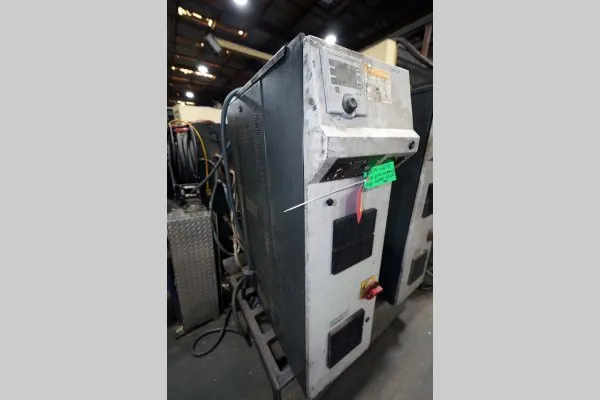

Used Regloplas Model: P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit
1 / 3| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Regloplas |
| Model | P160MD/18/SM75/2SK/RT100 |
| Size | 36 kw (18 kW per zone) |
| Inventory Number | DCM-6243 |
Regloplas - P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit, RT100 Controls
View Available Hot Water Units
Questions? Call (847) 360-9170 and mention DCM-6243.
Features & Accessories
- Leak-free pump with magnetic coupling
- Solid-state relay (SSR)
- High Limit Safety Circuit
- Separate Expansion Tank
- Regloplas RT-100 Digital Temperature Controller
Item Specifications for DCM-6243
| US | Metric | |
| Main Heater Power (Zone #1): | 18 kW | 18 kW |
| Pump Motor Size (Zone #1): | 2.0 HP | 1.5 KW |
| Flow Rate (Zone #1): | 23.8 gallons per minute | 90 liters per minute |
| Connection size/type (Zone #1): | 3/4 inch NPT | 1.81 mm NPT |
| Main Heater Power (Zone #2): | 18 kW | 18 kW |
| Pump Motor Size (Zone #2): | 2 HP | 1.5 KW |
| Flow Rate (Zone #2): | 23.8 gallons per minute | 90 liters per minute |
| Connection size/type (Zone #2): | 3/4 inch NPT | 1.81 mm NPT |
| Maximum Operating Temperature: | 320 degrees Fahrenheit | 160 degrees C |
| Power Requirements: | 480 volt / 3 phase / 60 cycle | 480 volt / 3 phase / 60 cycle |
| Overall Size (L x W x H): | 16.38 x 56.3 x 40.83 inches | 416 x 1430 x 1037 |
| Weight: | 374 Pounds | 170 kg |
Description
Used, Regloplas Model P160MD/18/SM75/2SK/RT100 36 kw (18 kW per zone) Dual (two) Zone Portable Hot Water Process Heater Temperature control Unit For_Sale, Features Include: Leak-free pump with magnetic coupling, Solid-state relay (SSR), High Limit Safety Circuit, Separate Expansion Tank, Regloplas RT-100 Digital Temperature Controller, RT100 controls, second Hand, DCM-6243
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
