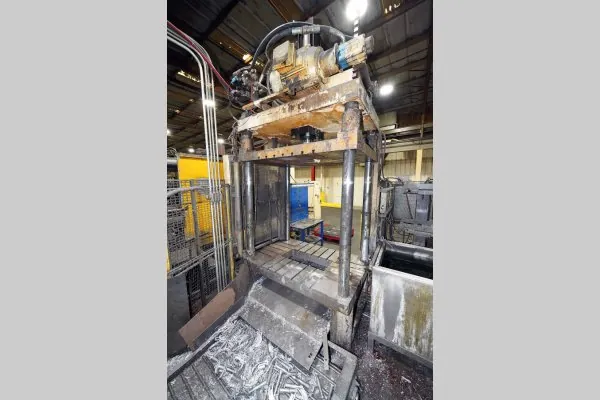

Used Metal Mechanics Model: TP-100 100 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | TP-100 |
| Size | 100 U.S. Ton |
| Inventory Number | DCM-6182 |
Metal Mechanics - TP-100 100 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley PLC Controls Controls
Questions? Call (847) 360-9170 and mention DCM-6182.
Features & Accessories
- Price includes Trim Press with Scrap Return Conveyor
- Air Safety Ratchet Device
- T-Slotted Bed & Moving Platen
- Three (3) Side Punch Core Circuit
- Top Mounted Hydraulics
- Lite-Touch Proximity Switches
- Light Curtains
Item Specifications for DCM-6182
| US | Metric | |
| Model: | TP-100 | TP-100 |
| Pressing Tonnage: | 100 tons | 45 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 4 inches | 101 mm |
| Daylight: | 66 inches | 1,066 mm |
| Stroke: | 48 inches | 660 mm |
| Shut Height: | 18 inches | 406 mm |
| Clearance between Tie Bars (Left to Right): | 61 inches | 1,219 mm |
| Clearance between Tie Bars (Front to Back): | 36 inches | 812 mm |
| Bed Size (Left to Right by Front to Back): | 74 x 49 inches | 1,473 x 1,066 mm |
| Cut out Size in Bed: (L/R x F/B) | 34 x 15 inches |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Please Return to Pace Harrison Bay 10 DCM#70 DCM-6219
- Sold – Fanuc Robotics Model: M-710i with R-J30iB Controller 710 Six Axis Industrial Robot with Die Spray Lubrication Package For Die Cast Applications DCM-6220
- Sold – Fanuc Robotics Model: R-2000iB 165 F with R-J30iB Controller 2000 Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper for Extracting Die Castings DCM-6221
- Sold – Striko Westofen Model: W 1200 SL ProDos xp 1200 kg Low Energy Electric Heated Aluminum Holding and Dosing Furnace DCM-6222
Description
Used, Metal Mechanics Model TP-100 100 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, T-Slotted Bed & Moving Platen, Three (3) Side Punch Core Circuit, Top Mounted Hydraulics, Lite-Touch Proximity Switches, Light Curtains, Allen Bradley PLC Controls controls, second Hand, DCM-6182
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
