SOLD

Used Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings

Used Fanuc Robotics Model: R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings1 / 5
StatusSold
ManufacturerFanuc Robotics
ModelR-2000iB 210F with R-30iA Controller
Size165 KG (363 pounds)
Inventory NumberDCM-6084

Fanuc Robotics - R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings, R-30iA Controls

View Available Robots

See available RobotsPrint PDF

Questions? Call (847) 360-9170 and mention DCM-6084.

Features & Accessories

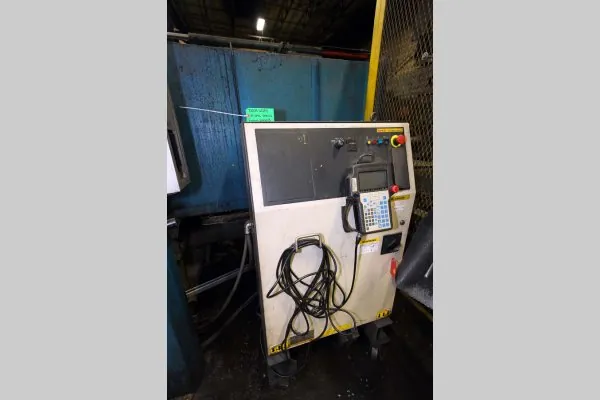

  • Well Proven Fanuc R-30iA Controller
  • High Positioning Speeds and Accuracy
  • Heavy Load Capacity
  • Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload
  • Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading

Item Specifications for DCM-6084

USMetric
Number of Axis:66
Payload Capacity:462 pounds210 KG
Control:R-30iARJ3
Repeatability:+/- .0012 inches+/- .0300 mm
Horizontal Reach:104.05 inches2,643 mm
Axis 1/J-1 Robot Motion Range/Speed:360 degrees+/- 180 degrees/105 ° second
Axis 2/J-2 Robot Motion Range/Speed:+136 degrees+75 degrees, -59 degrees/105 ° second
Axis 3/J-3 Robot Motion Range/Speed:362 degrees+229 degrees, -133 degrees/105 ° second
Axis 4/J-4 Robot Motion Range/Speed:720 degrees+/- 360 degrees/130 ° second
Axis 5/J-5 Robot Motion Range/Speed:250 degrees+/- 125 degrees/130 ° second
Axis 6/J-6 Robot Motion Range/Speed:720 degrees+/- 360 degrees/210 ° second
Weight:2,574 pounds1,300 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Fanuc Robotics Model R-2000iB 210F with R-30iA Controller 165 KG (363 pounds) Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings For_Sale, Features Include: Well Proven Fanuc R-30iA Controller, High Positioning Speeds and Accuracy, Heavy Load Capacity, Thin Arm Design Facilitates Reaching into Die Areas for part Load and Unload, Common Applications: CNC load/unload, Trim Press Load/Unload, Palletizing, Part Transfer, Machine Tending, Insert Loading, R-30iA controls, second Hand, DCM-6084

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
