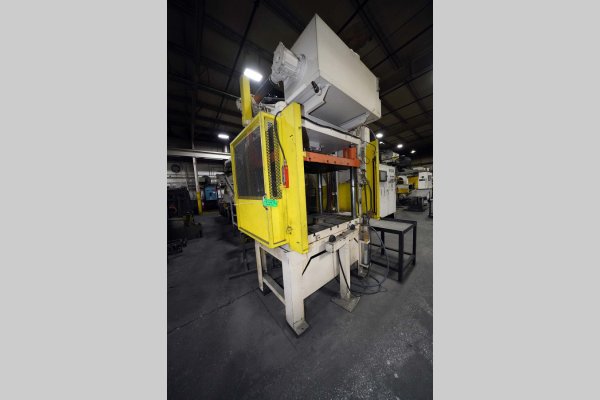

Used Metal Mechanics Model: MM-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 8| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Metal Mechanics |
| Model | MM-50 |
| Size | 50 Ton |
| Inventory Number | DCM-6006 |
Metal Mechanics - MM-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley PLC Solid State Controls Controls
Questions? Call (847) 360-9170 and mention DCM-6006.
Features & Accessories
- Air Safety Ratchet
- Top Mounted Hydraulics
- T-Slotted Platens - Moving and Base Plate
- Two (2) auxiliary hydraulic side core punch circuit
- Lite-Touch Proximity Switches
- Light Curtains
Item Specifications for DCM-6006
| US | Metric | |
| Model: | MM-50 | MM-35 |
| Pressing Tonnage: | 50 tons | 31 Tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 4 inches | 76.2 mm |
| Daylight: | 32 inches | 711.2 mm |
| Stroke: | 18 inches | 355.6 mm |
| Shut Height: | 14 inches | 355.6 mm |
| Clearance between Tie Bars (Left to Right): | 48 inches | 838.2 mm |
| Clearance between Tie Bars (Front to Back): | 25 inches | 533.2 mm |
| Bed Size (Left to Right by Front to Back): | 58 x 35 inches | 1,092.2 x 787.4 |
| Approximate Shipping Weight: | 10,500 Pounds | 2,722 |
| Approximate Footprint (L/R x F/B) : | 94 x 72 inches | 2133.6 x 1828.8 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Return To Pace Black Creek DCM #4 DCM-6031
- Rimrock/DieKast Model: 305/Diekast 300 Series 70 Inches of Stroke Multi-Link Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations DCM-6032
- F.W. Schaefer Model: FWS-600 600 Pounds per Hour Melt Rate Reverberatory Type Wet Bath Stationary Aluminum Melting and Holding Furnace DCM-6033
- PCDC Model: PCDC-QT 280 280 Gallon Quench Tank Capacity Quench Tanks used for quenching die castings DCM-6034
- PCDC Model: PCDC-SC 24 Inch Wide by 8 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6035
- PCDC Model: PCDC-GNC 24 Inch Wide by 14 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6036
- ABB Model: IRB 4400 45 Kilogram Six Axis Foundry Rated Industrial Robot DCM-6037
- PCDC Model: PCDC-30x156 30 Inch Wide by 13 foot long Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-6038
Description
Used, Metal Mechanics Model MM-50 50 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet, Top Mounted Hydraulics, T-Slotted Platens - Moving and Base Plate, Two (2) auxiliary hydraulic side core punch circuit, Lite-Touch Proximity Switches, Light Curtains, Allen Bradley PLC Solid State Controls controls, second Hand, DCM-6006
