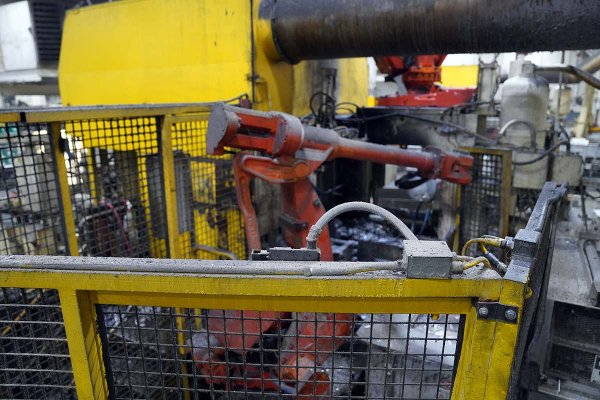

Used ABB Model: IRB 4400L/30 45 Kilogram Six Axis Foundry Rated Industrial Robot
1 / 4| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | ABB |
| Model | IRB 4400L/30 |
| Size | 45 Kilogram |
| Inventory Number | DCM-5953 |
ABB - IRB 4400L/30 45 Kilogram Six Axis Foundry Rated Industrial Robot, Controls
Questions? Call (847) 360-9170 and mention DCM-5953.
Features & Accessories
- Take Control of your Automatic Ladling and move to the next level of Ladling Performance only achievable with a six axis robot
- Fast maneuverability
- Medium to Heavy Payload Capability
- Renowned ABB Parts and Service
- Configured with Hardware for Automatic Ladling from Furnace to Die Cast Machine
Item Specifications for DCM-5953
| US | Metric | |
| Number of Axis: | 6 | 6 |
| Payload Capacity: | 99 pounds | 45 kg |
| Reach: | 77 inches | 1960 mm |
| Axis 1 Robot Motion Range: | +/- 330 degrees | +/- 330 degrees |
| Axis 2 Robot Motion Range: | +/- 165 degrees | +/- 165 degrees |
| Axis 3 Robot Motion Range: | +/- 125 degrees | +/- 125 degrees |
| Axis 4 Robot Motion Range: | +/- 400 degrees | +/- 400 degrees |
| Axis 5 Robot Motion Range: | +/- 240 degrees | +/- 240 degrees |
| Axis 6 Robot Motion Range: | +/- 800 degrees | +/- 800 degrees |
| Repeatability: | +/- 0.00276 inches | +/- 0.07 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press DCM-5923
- Sold – Please Return to Pace Muskegon 2121 Latimer DCM #6 DCM-5933
- ABB Model: IRB 6600 175 Kilogram Six Axis Industrial Robot with Die Spray Lubrication Package For Die Cast Applications DCM-5954
- ABB Model: IRB 6600 120 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-5955
- Sold – PCDC Model: PCDC-QT 385 385 Gallon Quench Tank Capacity Quench Tanks used for quenching die castings DCM-5996
Description
Used, ABB Model IRB 4400L/30 45 Kilogram Six Axis Foundry Rated Industrial Robot For_Sale, Features Include: Fast maneuverability, Medium to Heavy Payload Capability, Renowned ABB Parts and Service, Configured with Hardware for Automatic Ladling from Furnace to Die Cast Machine, controls, second Hand, DCM-5953
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
