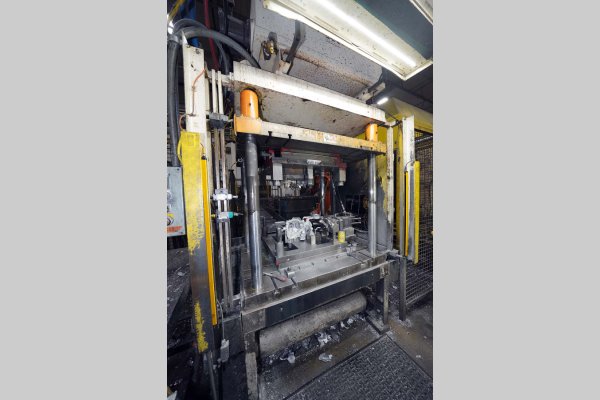

Used Metal Mechanics Model: TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | TP-50 |
| Size | 50 U.S. Ton |
| Inventory Number | DCM-5924 |
Metal Mechanics - TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley PLC Controls Controls
Questions? Call (847) 360-9170 and mention DCM-5924.
Features & Accessories
- Air Safety Ratchet Device
- T-Slotted Bed & Moving Platen
- One (1) Side Punch Core Circuit
- Top Mounted Hydraulics
- Lite-Touch Proximity Switches Operation
- Light Curtains
Item Specifications for DCM-5924
| US | Metric | |
| Model: | TP-50 | TP-50 |
| Pressing Tonnage: | 50 tons | 45 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 4 inches | 101 mm |
| Daylight: | 44 inches | 1,066 mm |
| Stroke: | 24 inches | 660 mm |
| Shut Height: | 20 inches | 406 mm |
| Clearance between Tie Bars (Left to Right): | 48.500 inches | 1,219 mm |
| Clearance between Tie Bars (Front to Back): | 36.500 inches | 812 mm |
| Bed Size (Left to Right by Front to Back): | 60 x 48 inches | 1,473 x 1,066 mm |
| Cut out Size in Bed: | 30 x 24 inches | 609 x 406 mm |
| Machine Weight (approximate): | 50,000 |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Please Return to Pace Muskegon 2121 Latimer DCM #7 DCM-5934
- Sold – ABB Model: IRB 4400L/30 45 Kilogram Six Axis Foundry Rated Industrial Robot DCM-5956
- Sold – ABB Model: IRB 6600 175 Kilogram Six Axis Industrial Robot with Die Spray Lubrication Package For Die Cast Applications DCM-5957
- Sold – ABB Model: IRB 6400 120 Kilogram Six Axis Industrial Robot with Extractor Package/Gripper For Extracting Die Castings DCM-5958
- Sold – PCDC Model: PCDC-QT 385 385 Gallon Quench Tank Capacity Quench Tanks used for quenching die castings DCM-5995
Description
Used, Metal Mechanics Model TP-50 50 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, T-Slotted Bed & Moving Platen, One (1) Side Punch Core Circuit, Top Mounted Hydraulics, Lite-Touch Proximity Switches Operation, Light Curtains, Allen Bradley PLC Controls controls, second Hand, DCM-5924
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
