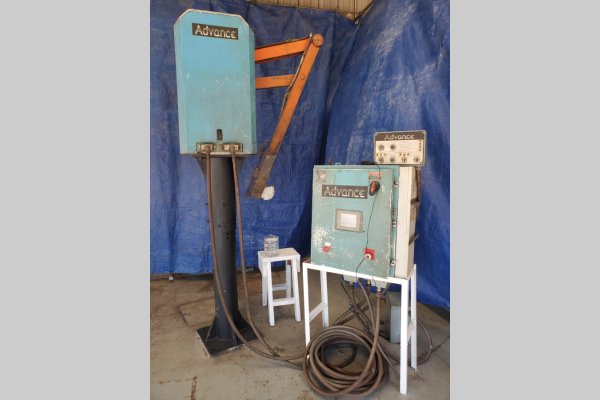

Used Advance Products Model: SL 1500 HS 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations

StatusSold
ManufacturerAdvance Products
ModelSL 1500 HS
Size25 Pound Capacity
Inventory NumberDCM-5894

Advance Products - SL 1500 HS 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Mitsubishi FX-2 2N 32MR-R22 PLC Controls

View Available Auto-Ladles

Questions? Call (847) 360-9170 and mention DCM-5894.

Features & Accessories

  • Color Touch-Screen Human-Machine-Interface (HMI) Plus Remote Push Button Station
  • Mitsubishi PLC Controls and Motor Drives Powering Mitsubishi AC Servo Motors With Up To 500 Program Storage Capability
  • Equipped with Adjustable Height Pedestal with Tilting Head Capability Plus Optional 18 Inch Bottom Riser
  • Advance Forward on Pour Command - AKA Pour Forward - Helps Align Metal to Pour Location as Ladle Cup Empties
  • Adjust shot weight on the fly during operation
  • Auto Teach Mode

Item Specifications for DCM-5894

USMetric
Total Stroke (Maximum):Adjustable 88.5 inchesAdjustable 2247.9 mm
Forward Stroke (Maximum):Adjustable 63 inchesAdjustable 1600.2 mm
Reach Back:Adjustable 25.5 inchesAdjustable 647.7 mm
Pour Capacity (Aluminum):25 pounds11 Kg
Cycle Speed:AdjustableAdjustable
Power Requirements208/3/60 20 amp208/3/60 20 amp
Motor Drive:Brushless ServoBrushless Servo
Side of Operation:Helper SideHelper Side
User Interface:Color HMI Touch ScreenColor HMI Touch Screen
Manual Controls:Remote Push Button Station & HMIRemote Push Button Station & HMI

Video

Description

Used, Advance Products Model SL 1500 HS 25 Pound Capacity Multi-Link, Helper-Side, Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Color Touch-Screen Human-Machine-Interface (HMI) Plus Remote Push Button Station, Mitsubishi PLC Controls and Motor Drives Powering Mitsubishi AC Servo Motors With Up To 500 Program Storage Capability, Equipped with Adjustable Height Pedestal with Tilting Head Capability Plus Optional 18 Inch Bottom Riser, Advance Forward on Pour Command - AKA Pour Forward - Helps Align Metal to Pour Location as Ladle Cup Empties, Adjust shot weight on the fly during operation, Auto Teach Mode, Mitsubishi FX-2 2N 32MR-R22 PLC controls, second Hand, DCM-5894
