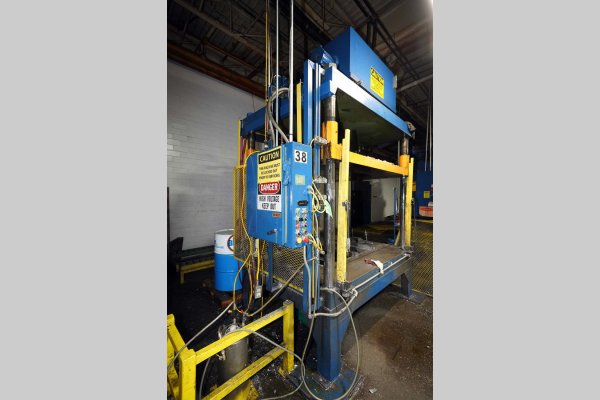

Used Metal Mechanics Model: TP-75 75 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerMetal Mechanics
ModelTP-75
Size75 U.S. Ton
Inventory NumberDCM-5813

Metal Mechanics - TP-75 75 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley Micrologix 12000 PLC Controls Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-5813.

Features & Accessories

  • Air Safety Ratchet Device
  • T-Slotted Bed & Moving Platen
  • Two (2) Side Punch Circuits
  • Top Mounted Hydraulics
  • Allen Bradely MicroLogix 1200 Controls

Item Specifications for DCM-5813

USMetric
Model:TP-75TP-75
Pressing Tonnage:75 tons68 tons
Number of Columns:44
Column Diameter:4 inches101 mm
Daylight:54 inches1,371 mm
Stroke:30 inches762 mm
Shut Height:24 inches609 mm
Clearance between Tie Bars (Left to Right):72 inches1,826 mm
Clearance between Tie Bars (Front to Back):50 inches1,275mm
Bed Size (Left to Right by Front to Back):83 x 61 inches2,109 x 1,549 mm
Cut out Size in Bed:36 x 28 inches914 x 711 mm

Description

Used, Metal Mechanics Model TP-75 75 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, T-Slotted Bed & Moving Platen, Two (2) Side Punch Circuits, Top Mounted Hydraulics, Allen Bradely MicroLogix 1200 Controls, Allen Bradley Micrologix 12000 PLC Controls controls, second Hand, DCM-5813

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
