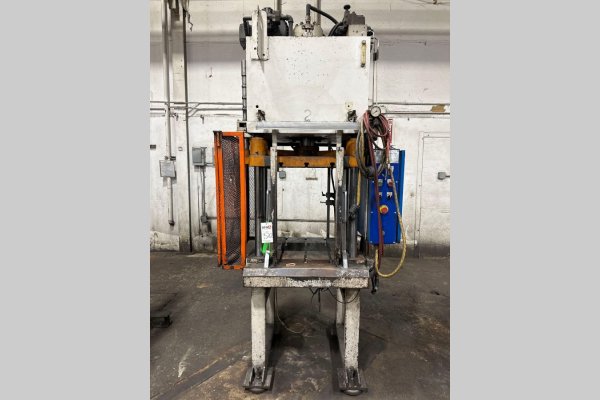

Used Long Beach - Sunrise Model: TP-20B 20 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Long Beach - Sunrise |
| Model | TP-20B |
| Size | 20 Ton |
| Inventory Number | DCM-5722 |
Long Beach - Sunrise - TP-20B 20 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley MicroLogix 1000 Controls
Questions? Call (847) 360-9170 and mention DCM-5722.
Features & Accessories
- New in 2007, equipped with Allen Bradley MicroLogix 1000 PLC Controls
- Air Safety Ratchet and Light Curtains
- Dual Safety Pull-Out Bars
- T-Slotted Platens - Moving & Stationary Platens
- Allen Bradley MicroLogix 1000 PLC Solid State Controls
Item Specifications for DCM-5722
| US | Metric | |
| Model: | TP-42B | TP-20B |
| Pressing Tonnage: | 20 tons | 20 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3 inches | 76.2 mm |
| Daylight: | 26 inches | 660 mm |
| Stroke: | 18 inches | 457 mm |
| Shut Height: | 8 inches | 203 mm |
| Clearance between Tie Bars (Left to Right): | 24 inches | 609 mm |
| Clearance between Tie Bars (Front to Back): | 16.5 inches | 412.5 mm |
| Bed Size (Left to Right by Front to Back): | 33.5 x 25.75 inches | 851 x 698 mm |
| Cut out Size in Bed: | 18 x 12 Inch | 457 x 304 mm |
| Approximate Footprint (L/R x F/B): | 53 x 39 inches | 1,346 x 990 mm |
Description
Used, Long Beach - Sunrise Model TP-20B 20 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet and Light Curtains, Dual Safety Pull-Out Bars, T-Slotted Platens - Moving & Stationary Platens, Allen Bradley MicroLogix 1000 PLC Solid State Controls, Allen Bradley MicroLogix 1000 controls, second Hand, DCM-5722
