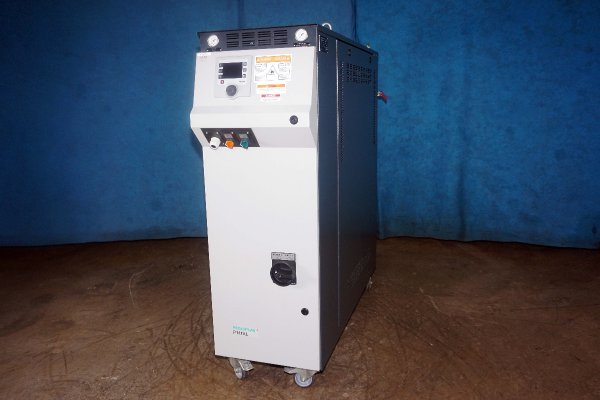

Used Regloplas Hot Water Model: P141XL/20/SG85/SK/RT100 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit
1 / 34| Status | Sold |
|---|---|
| Manufacturer | Regloplas Hot Water |
| Model | P141XL/20/SG85/SK/RT100 |
| Size | 20 kW |
| Inventory Number | DCM-5695 |
Regloplas Hot Water - P141XL/20/SG85/SK/RT100 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit, RT100 Controls
View Available Hot Water Units
Questions? Call (847) 360-9170 and mention DCM-5695.
Features & Accessories
- Call us on our Hot Oil Temperature Control Unit Hot Line 7:00 AM to 7:00 PM at 1-847-360-9170 Extension 2
- Non-Rusting Materials used in Water Circuit
- Solid-state relay (SSR)
- Separate Expansion Tank
- Regloplas RT-100 Digital Temperature Controller with Patented low-scale cooling system (SK)
- New in 2020!
Item Specifications for DCM-5695
| US | Metric | |
| Heating Capacity: | 20 kW | 20 kW |
| Cooling Capacity: | 115 kw | 115 kw |
| Maximum Operating Temperature: | 284 degrees F | 140 degrees C |
| Maximum Flow Rate: | 52.8 gallons per minute (GPM) | 200 liters per minute (LPM) |
| Maximum Rated System Pressure: | 76.9 Pounds Per Square Inch (PSIG) | 5.3 BAR |
| Pump Motor Size: | 4.69 Horsepower (HP) | 3.5 kw |
| Process Connection Size/Type | 1.5 inches NPT | 38.1 mm NPT |
| Tank Capacity/Expansion Capacity: | 2.6 Gallons/1.3 Gallons | 9.84 liters/4.92 liters |
| Full Load Amps @ 460 volt: | 33 amp | 33 amp |
| Overall Size (L x W x H): | 62 x 17 x 54 inches | 1575 x 432 x 1372 mm |
| Weight: | 590 lbs | 268 kg |
Documents
- Manual RT100 ControllerPDF · 937 KB
- Regloplas_P141XL_SpecificationsPDF · 318 KB
Description
Used, Regloplas Hot Water Model P141XL/20/SG85/SK/RT100 20 kW Single Zone Portable Hot Water Process Heater Temperature control Unit For_Sale, Features Include: Non-Rusting Materials used in Water Circuit, Solid-state relay (SSR), Separate Expansion Tank, Regloplas RT-100 Digital Temperature Controller with Patented low-scale cooling system (SK), New in 2020!, RT100 controls, second Hand, DCM-5695
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
