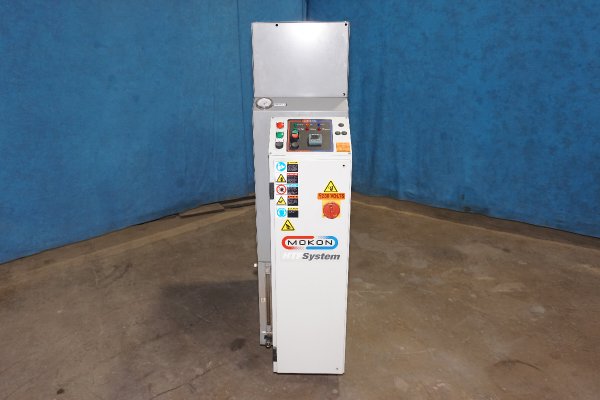

Used Mokon Model: H62118QE 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 46| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H62118QE |
| Size | 18 kW |
| Inventory Number | DCM-5656 |
Mokon - H62118QE 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls
Questions? Call (847) 360-9170 and mention DCM-5656.
Features & Accessories
- HTF 600 Series Mokon Rated for 600 Fahrenheit Operation
- Eurotherm 3216 Digital Controller
- Water Cooling Circuit for Process Cooling controlled by the Eurotherm 3216 Controller
- Built-in pump pressure relief valve.
- Unit is on casters for easy movement.
Item Specifications for DCM-5656
| US | Metric | |
| Main Heater Power: | 18 kW | 18 kw |
| Pump Motor Size: | 2 HP @ 1175 RPM | 1.5 kw @ 1175 RPM |
| Process Connection Size/Type: | 1 inch NPT (National Pipe Thread) | 1 inch NPT (National Pipe Thread) |
| Flow Rate: | 20 gallons per minute | 75.70 liters per minute |
| Maximum Rate Operating Temperature: | 600 Degrees Fahrenheit | 315.5 Celsius |
| Overall Size (L x W x H): | 41 x 30 x 62 inches | 1041 x 762 x 1575 mm |
| Full Load Amps @ 230/3/60: | 51.6 Amps | 51.6 Amps |
Video
Description
Used, Mokon Model H62118QE 18 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 600 Series Mokon Rated for 600 Fahrenheit Operation, Eurotherm 3216 Digital Controller, Water Cooling Circuit for Process Cooling controlled by the Eurotherm 3216 Controller, Built-in pump pressure relief valve., Unit is on casters for easy movement., Eurotherm 3216 controls, second Hand, DCM-5656
