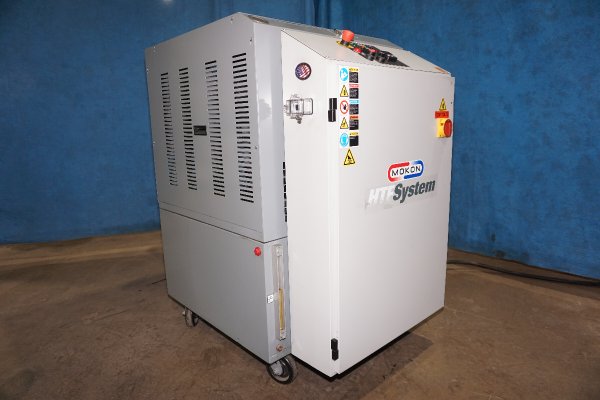

Used Mokon Model: HF7A12DJ 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 34| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | HF7A12DJ |
| Size | 12 KW |
| Inventory Number | DCM-5653 |
Mokon - HF7A12DJ 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Watlow EZ-Zone with EtherNet/IP Capability Controls
Questions? Call (847) 360-9170 and mention DCM-5653.
Features & Accessories
- Manufactured New in 2019
- Factory Upgraded to Watlow EZ-Zone Digtial Controller with EtherNet/IP Capability
- Factory Upgraded with Magnetic Drive Centrifugal (turbine) pump
- Built-in pump pressure relief valve
- Equipped with Water Cooling Circuit
- HTF 600 Series
- Unit on casters for easy movement
Item Specifications for DCM-5653
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 3 HP | 2.23 kW |
| Flow Rate (Zone #1): | 25 gallons per minute | 94 liters per minute |
| Connection size/type (Zone #1): | 1-1/2 inch NPT | 1-1/2 inch NPT (38.1 mm) |
| Maximum Operating Temperature: | 600 degrees F | 315.5 degrees C |
| Overall Size (L x W x H): | 44 X 30 x 51 inches | 1117 x 762 x 1295 mm |
| Full Load Amps @ 208/3/60: | 49 amp | 49 amp |
| Weight: | 460 lbs | 209 kg |
Video
Description
Used, Mokon Model HF7A12DJ 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Factory Upgraded to Watlow EZ-Zone Digtial Controller with EtherNet/IP Capability, Factory Upgraded with Magnetic Drive Centrifugal (turbine) pump, Built-in pump pressure relief valve, Equipped with Water Cooling Circuit, HTF 600 Series, Unit on casters for easy movement, Watlow EZ-Zone with EtherNet/IP Capability controls, second Hand, DCM-5653
