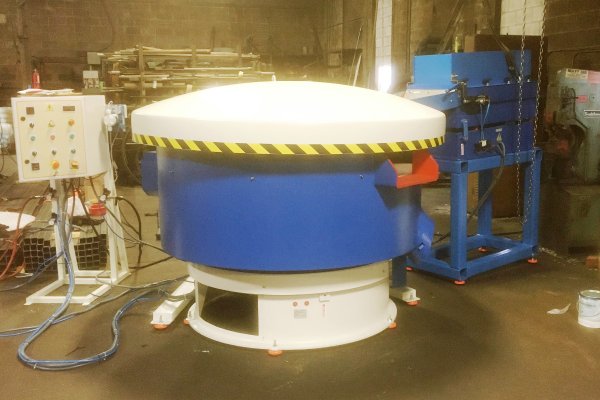

Used Royson Engineering Model: 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine
1 / 9| Status | Sold |
|---|---|
| Manufacturer | Royson Engineering |
| Model | 20-CTV-IS |
| Size | 20 Cubic Feet |
| Inventory Number | DCM-5598 |
Royson Engineering - 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine, Royson Controls
View Available Vibratory Finishing Equipment
Questions? Call (847) 360-9170 and mention DCM-5598.
Features & Accessories
- Machine was purchased new and has never been installed - Includes Vibratory Feed Hopper System, Media Compound Infusion System, Settling Tank, 1,500 pounds of Ceramic Media and 55 Gallon Drum of Royson #55 Compound
- Long-Life Poly-Urethane Lining
- Control Panel with Variable Speed Drive system and Control for dosing compound media solution
- Pnuematic Ramp Control for unloading
- Ramp Screen for Parts/Media Seperation
- Pneumantic Powerd Up/Down Sound Hood Enclosurer
- Settling Tank
Item Specifications for DCM-5598
| US | Metric | |
| Maximum Working Capacity: | 20 Cubic Feet | .56Cubic Meters |
| Main Drive Motor: | 7.5 HP Variable Speed | 5.5 kw |
| Process Channel Width: | 17 Inches | 431 mm |
| Process Channel Shape: | U | U |
| Screen Deck Width: | 17 Inches | 431 mm |
| Overall Height: | 58.0 Inches | 1,473 mm |
| Overall Diameter: | 69 Inches | 1,510 mm |
| Approximate Weight: | 3,220 pounds | 3,000 Kg |
Documents
- Royson_Engineering_System_Layout_Drawing_20CTVISLAYOUT2014PDF · 564 KB
- Royson_20-CTV-IS339_ Vibratory_BowlPDF · 120 KB
Description
Used, Royson Engineering Model 20-CTV-IS 20 Cubic Feet Vibratory Bowl Finishing Machine For_Sale, Features Include: Long-Life Poly-Urethane Lining, Control Panel with Variable Speed Drive system and Control for dosing compound media solution, Pnuematic Ramp Control for unloading, Ramp Screen for Parts/Media Seperation, Pneumantic Powerd Up/Down Sound Hood Enclosurer, Settling Tank, Royson controls, second Hand, DCM-5598
