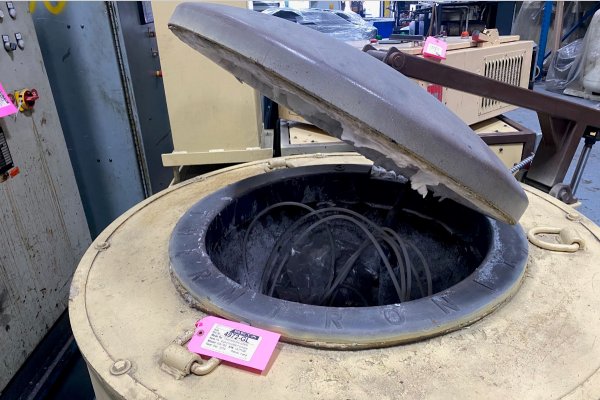

Used Thermtronix Model: GS-700 350 Pound Per Hour Melt Capacity in Aluminum Natural Gas Heated Silicon Carbide Crucible Type Aluminum Melting-Holding Furnace
1 / 10| Status | Sold |
|---|---|
| Manufacturer | Thermtronix |
| Model | GS-700 |
| Size | 350 Pound Per Hour Melt Capacity in Aluminum |
| Inventory Number | DCM-5594 |
Thermtronix - GS-700 350 Pound Per Hour Melt Capacity in Aluminum Natural Gas Heated Silicon Carbide Crucible Type Aluminum Melting-Holding Furnace, Thermtronix Solid State Controller Controls
View Available Aluminum Melting Furnaces
Questions? Call (847) 360-9170 and mention DCM-5594.
Features & Accessories
- Uses Silicon Carbide Crucibles For Aluminum Alloys
- Crucible Design Allows for Quick Change-Over from One Alloy to the Next
- Power-Lid to Cover Furnace Bath/Crucible - Saves Energy during Aluminum Melting and Holding Operations
- Compact Furnace Design - High Melt Rate vs Size of Furnace
Item Specifications for DCM-5594
| US | Metric | |
| Melting Rate - Batch Melt - Covered Lid: | 350 pounds per hour Aluminum | 158 Kg Per Hour - Aluminum |
| Melting Rate - Open Lid Operation | 240 pound per hour | 108 Kg Per Hour - Aluminum |
| Bath Capacity: | 700 pounds Aluminum | 317 Kg Aluminum |
| Heating Source: | Natural Gas | Natural Gas |
| Furnace Design: | Silcon Carbide Crucible | Silcon Carbide Crucible |
| Operating Temperature: | 1,300 degrees Fahrenheit | 704 degrees Celsius |
| Burner Size BTU & Cubic Feet per Hour | 1,000,000 BTU - 1,000 CFH | 1,000,000 BTU - 28.3 Cubic Meters/Hour |
| Overall Size (L x W x H): | 92 x 98 x 108 inches (height includes stack) | 2,336 x 2,489 x 2,743 mm |
| Power Requirements: | 480/3/60 | 480/3/60 |
| Power Lid to cover Crucible: | Yes | Yes |
Documents
- Thermtronix GS Series SpecificationsPDF · 1.5 MB
Description
Used, Thermtronix Model GS-700 350 Pound Per Hour Melt Capacity in Aluminum Natural Gas Heated Silicon Carbide Crucible Type Aluminum Melting-Holding Furnace For_Sale, Features Include: Uses Silicon Carbide Crucibles For Aluminum Alloys, Crucible Design Allows for Quick Change-Over from One Alloy to the Next, Power-Lid to Cover Furnace Bath/Crucible - Saves Energy during Aluminum Melting and Holding Operations, Compact Furnace Design - High Melt Rate vs Size of Furnace, Thermtronix Solid State Controller controls, second Hand, DCM-5594
