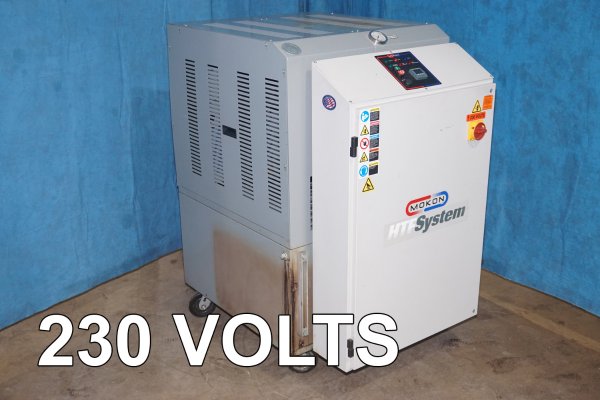

Used Mokon Model: H62112Z6 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 36| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H62112Z6 |
| Size | 12 KW |
| Inventory Number | DCM-5488 |
Mokon - H62112Z6 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls
Questions? Call (847) 360-9170 and mention DCM-5488.
Features & Accessories
- Eurotherm 3216 Digital PID Controller
- Mokon Dependability
- Unit on casters for easy movement
- Water Cooling Circuit
- HTF 600 Series
Item Specifications for DCM-5488
| US | Metric | |
| Main Heater Power (Zone #1): | 12 KW | 12 KW |
| Pump Motor Size (Zone #1): | 2 HP | 1.49 kW |
| Flow Rate (Zone #1): | 20 gallons per minute | 75.7 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 25.4 mm NPT |
| Maximum Operating Temperature: | 600 degrees F | 315.5 degrees C |
| Overall Size (L x W x H): | 42 x 31 x 51 inches | 1067 x 787 x 1295 mm |
| Full Load Amps @ 230/3/60: | 38 amp | 38 amp |
| Weight: | 460 lbs | 209 kg |
Video
Documents
Description
Used, Mokon Model H62112Z6 12 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: Eurotherm 3216 Digital PID Controller, Mokon Dependability, Unit on casters for easy movement, Water Cooling Circuit, HTF 600 Series, Eurotherm 3216 controls, second Hand, DCM-5488
