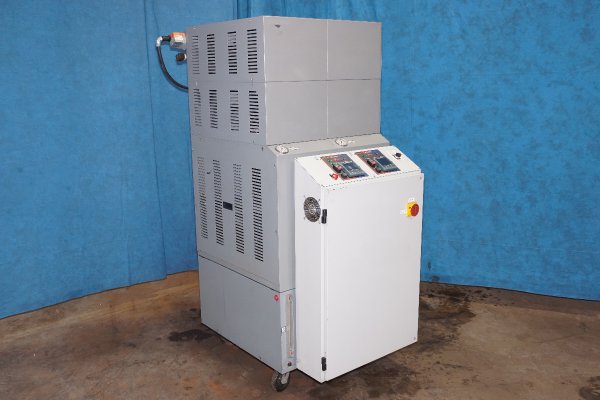

Used Mokon Model: H44200NY 27 kW (18 kw and 9 kw) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 43| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H44200NY |
| Size | 27 kW (18 kw and 9 kw) |
| Inventory Number | DCM-5464 |
Mokon - H44200NY 27 kW (18 kw and 9 kw) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3504 Controls
Questions? Call (847) 360-9170 and mention DCM-5464.
Features & Accessories
- Built from factory, the unit is equipped with a secondary heat exchanger on each zone to support exothermic process.
- HTF 500 Series Mokon Dependability
- Eurotherm 3504 Controller
- Built-in pump pressure relief valve
- Water Cooling Circuit
- Unit on casters for easy movement
Item Specifications for DCM-5464
| US | Metric | |
| Main Heater Power (Zone #1): | 18 KW | 18 kW |
| Pump Motor Size (Zone #1): | 1 HP | .74 KW |
| Flow Rate (Zone #1): | 10 gallons per minute | 37.9 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Main Heater Power (Zone #2): | 9 KW | 9 KW |
| Pump Motor Size (Zone #2): | 1 HP | .75 KW |
| Flow Rate (Zone #2): | 10 gallons per minute | 37.9 liters per minute |
| Connection size/type (Zone #2): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 260 degrees C |
| Overall Size (L x W x H): | 41 x 30 x 62 inches | 1041 x 762 x 1575 mm |
| Full Load Amps @ 460/3/60: | 37.6 amp | 37.6 amp |
Video
Description
Used, Mokon Model H44200NY 27 kW (18 kw and 9 kw) Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Dependability, Eurotherm 3504 Controller, Built-in pump pressure relief valve, Water Cooling Circuit, Unit on casters for easy movement, Eurotherm 3504 controls, second Hand, DCM-5464
