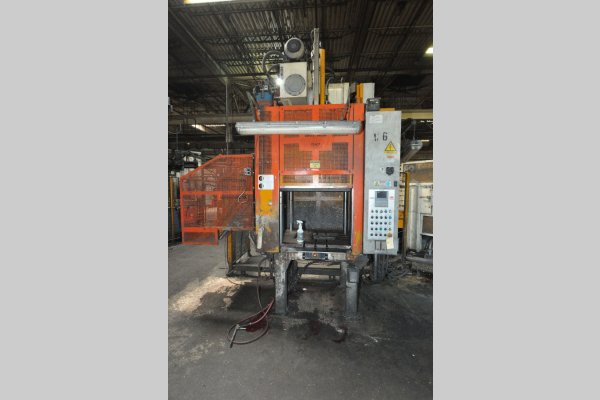

Used Diesse Presse Model: T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerDiesse Presse
ModelT35NG+
Size35 Metric Ton
Inventory NumberDCM-5327

Diesse Presse - T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-5327.

Features & Accessories

  • New in 2012, includes factory installed shuttle-table for unloading trimmed parts.
  • Safety Bar Device
  • T-Slotted Bed & Movable Platen
  • Siemens S7-300 Solid State Controls with Color Touch-Screen HMI
  • Dual Palm Button Operation with Safety Barrier Door
  • Two (2) Auxiliary Side Core Punch Circuits, Center Hydraulic Part Ejector Cylinder
  • Top Mounted Hydraulics

Item Specifications for DCM-5327

USMetric
Model:T35GN+DCT-35
Pressing Tonnage:38.5 tons35 tons
Number of Columns:44
Column Diameter:3 inches76.2 mm
Daylight:47 inches812.8 mm
Stroke:25 inches508 mm
Shut Height:22 inches304.8 mm
Cut-Out in Bed (L/R x F/B):28 x 19.5 inches (removable filler plates)1,168 x 762 mm
Clearance between Tie Bars (Left to Right):35 inches1066.8 mm
Clearance between Tie Bars (Front to Back):35 inches762 mm
Bed Size (Left to Right by Front to Back):44.5 x 44.5 inches

Description

Used, Diesse Presse Model T35NG+ 35 Metric Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Safety Bar Device, T-Slotted Bed & Movable Platen, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI, Dual Palm Button Operation with Safety Barrier Door, Two (2) Auxiliary Side Core Punch Circuits, Center Hydraulic Part Ejector Cylinder, Top Mounted Hydraulics, Siemens S7-300 Solid State Controls with Color Touch-Screen HMI controls, second Hand, DCM-5327
