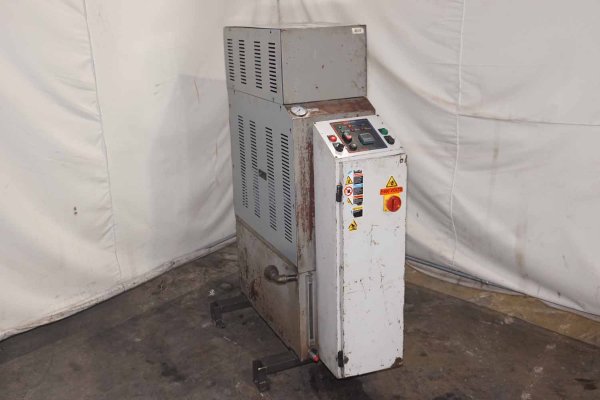

Used Mokon Model: H54124SY 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit
1 / 27| Status | Sold |
|---|---|
| Manufacturer | Mokon |
| Model | H54124SY |
| Size | 24 KW |
| Inventory Number | DCM-5240 |
Mokon - H54124SY 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit, Eurotherm 3216 Controls
Questions? Call (847) 360-9170 and mention DCM-5240.
Features & Accessories
- HTF 500 Series Mokon Dependability
- Eurotherm 3216 Controller
- Built-in pump pressure relief valve
- Water Cooling Circuit
Item Specifications for DCM-5240
| US | Metric | |
| Main Heater Power (Zone #1): | 24 KW | 24 KW |
| Pump Motor Size (Zone #1): | 2 HP @ 1176 RPM | 1.49 KW @ 1176 RPM |
| Flow Rate (Zone #1): | 20 gallons per minute | 75.70 liters per minute |
| Connection size/type (Zone #1): | 1 inch NPT | 1 inch NPT |
| Maximum Operating Temperature: | 500 degrees F | 315 degrees C |
| Overall Size (L x W x H): | 44 x 15 x 60 inches | 1117 x 381 x 1524 mm |
| Full Load Amps @ 460/3/60: | 27.8 amps | 27.8 amps |
| Weight: | 593 pounds | 268 kg |
Video
Documents
Description
Used, Mokon Model H54124SY 24 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit with Cooling Water Circuit For_Sale, Features Include: HTF 500 Series Mokon Dependability, Eurotherm 3216 Controller, Built-in pump pressure relief valve, Water Cooling Circuit, Eurotherm 3216 controls, second Hand, DCM-5240
