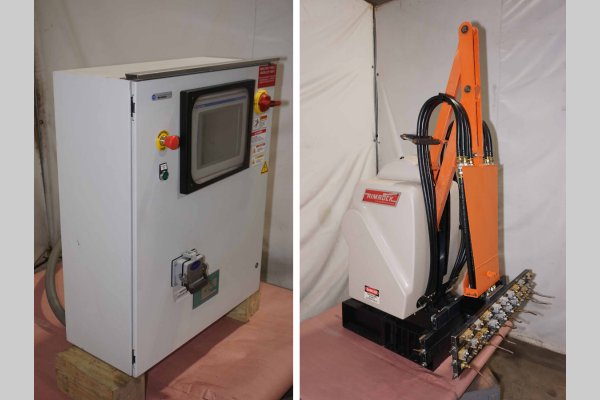

Used Rimrock Model: 410 AB K5500 72 Inch Stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations

Used Rimrock Model: 410 AB K5500 72 Inch Stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations1 / 36
StatusSold
ManufacturerRimrock
Model410 AB K5500
Size72 Inch Stroke
Inventory NumberDCM-5226

Rimrock - 410 AB K5500 72 Inch Stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations, Allen-Bradley CompactLogix 5370 K5500 Servo-Driver and PanelView Plus 1000 Controls

View Available Die Sprayers

See available Die SprayersPrint PDF

Questions? Call (847) 360-9170 and mention DCM-5226.

Features & Accessories

  • New in November 2019 - Allen-Bradley CompactLogix 5370 with K5500 Servo-Driver and PanelView Plus 1000 Color Touch-Screen HMI
  • Motorized horizontal base adjustment to compensate for varying die thicknesses
  • Dual Lube A & B Manifold included with Spray heads as pictured
  • Rugged but compact design
  • Includes Optional Heavy Duty Adjustable Base Mount
  • Equipped with Wollin Spray Manifold with 49 total Spray Nozzles (may be deleted for credit or replaced with Rimrock Spray Manifold)

Item Specifications for DCM-5226

USMetric
Vertical Stroke:72 inches1,828 mm
Horizontal Stroke:21.7 inches551 mm
Machine Height:63.8 inches1620 mm
Machine Width:20.5 inches520 mm
Spray Control:Dual Lube A/BDual Lube A/B
Power Requirements:120/1/60120/1/60
Motor Drive:Servo driveServo drive
Controls:Allen Bradley K5500Allen Bradley K5500

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Documents

Description

Used, Rimrock Model 410 AB K5500 72 Inch Stroke Multi-Link Automatic Reciprocating Die Lubrication Sprayer for Die Casting and Foundry Operations For_Sale, Features Include: Motorized horizontal base adjustment to compensate for varying die thicknesses, Dual Lube A & B Manifold included with Spray heads as pictured, Rugged but compact design, Includes Optional Heavy Duty Adjustable Base Mount, Equipped with Wollin Spray Manifold with 49 total Spray Nozzles (may be deleted for credit or replaced with Rimrock Spray Manifold), Allen-Bradley CompactLogix 5370 K5500 Servo-Driver and PanelView Plus 1000 controls, second Hand, DCM-5226

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
