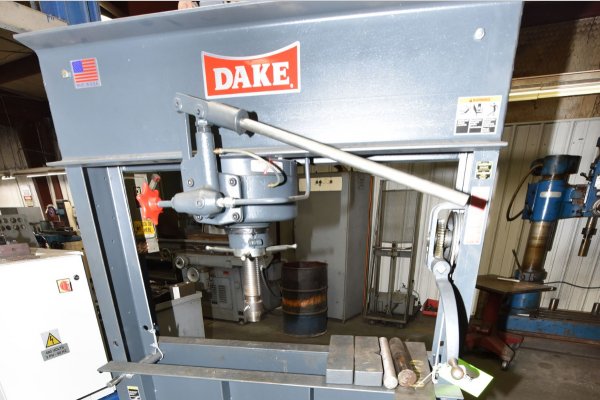

Used Dake Model: 150H 150 Tons Hydraulically Powered, Manually Operated Toolroom Shop Press
1 / 5| Status | Sold |
|---|---|
| Manufacturer | Dake |
| Model | 150H |
| Size | 150 Tons |
| Inventory Number | DCM-5171 |
Dake - 150H 150 Tons Hydraulically Powered, Manually Operated Toolroom Shop Press, Controls
View Available Tool Room Equipment
Questions? Call (847) 360-9170 and mention DCM-5171.
Features & Accessories
- By-pass hole to prevent over extension of Ram.
- Has a Rapid screw traverse to allow easy movement by hand-wheel.
- Adjustable table permits movement in the vertical axis easily, with a self-locking hoist.
Item Specifications for DCM-5171
| US | Metric | |
| Capacity: | 150 Tons | 136 Tons |
| Width between Uprights: | 48 inches | 1219.2 mm |
| Width between table channels: | 12.125 inches | 307.975 mm |
| Min ram to table: | 5 inches | 127 mm |
| Max to table: | 25 inches | 635 mm |
| Ram travel: | 8 inches | 203.2 mm |
| Screw travel: | 8 inches | 203.2 mm |
| Horizontal workhead travel: | 12.125 inches | 307.975 mm |
| Height: | 95 inches | 2413 mm |
| Base( L x W ): | 66 x 42 inches | 1676.4 mm x 1066.8 mm |
| Weight: | 2,750 Pounds | 1,247 kg |
Documents
Description
Used, Dake Model 150H 150 Tons Hydraulically Powered, Manually Operated Toolroom Shop Press For_Sale, Features Include: By-pass hole to prevent over extension of Ram., Has a Rapid screw traverse to allow easy movement by hand-wheel., Adjustable table permits movement in the vertical axis easily, with a self-locking hoist., controls, second Hand, DCM-5171
