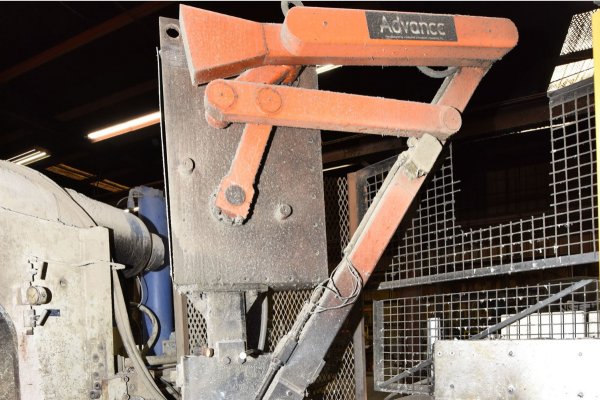

Used Advance Products Model: SL 800-O (Operator Side) 25 Pound Pour Capacity Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations
1 / 12| Status | Sold |
|---|---|
| Manufacturer | Advance Products |
| Model | SL 800-O (Operator Side) |
| Size | 25 Pound Pour Capacity |
| Inventory Number | DCM-5170 |
Advance Products - SL 800-O (Operator Side) 25 Pound Pour Capacity Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations, Mitsubishi L Series MelSec PLC and MELSERVO-J4 Servo Amplifiers and GT231-VTBD Color HMI Controls
Questions? Call (847) 360-9170 and mention DCM-5170.
Features & Accessories
- Control Version: Mitsubishi L Series MelSec PLC and MELSERVO-J4 Servo Amplifiers and GT231-VTBD Color HMI
- Advance Forward on Pour Command - Pour Forward
- Operator-Side Unit
- Adjust shot weight on the fly during operation
- LCD Color Touch-Screen HMI with up to 500 program storage
- Equipped with Remote Operator Push-Button Control Station
Item Specifications for DCM-5170
| US | Metric | |
| Total Stroke (Maximum): | Adjustable 69.2 inches | Adjustable 1,760 mm |
| Forward Stroke (Maximum): | Adjustable 35.5 inches | Adjustable 900 mm |
| Reach Back: | Adjustable 33.7 inches | Adjustable 860 mm |
| Pour Capacity (Aluminum): | 25 pounds | 11.3 Kg |
| Cycle Speed: | Adjustable | Adjustable |
| Power Requirements | 208/3/60 | 208/3/60 20 |
| Motor Drive: | Brushless Servo | Brushless Servo |
| Side of Operation: | Operator Side | Operator Side |
| HMI Interface: | Touch-Screen Color LCD | Touch-Screen Color LCD |
| Program Storage Capacity: | 500 programs | 500 programs |
| Control Weight: | 250 pounds | 114 KG |
| Mechanism Weight (power-head): | 680 pounds | 310 KG |
Documents
- Advance_Products_Servo-Ladling_SystemsPDF · 1.6 MB
Description
Used, Advance Products Model SL 800-O (Operator Side) 25 Pound Pour Capacity Multi-Link High Speed Automatic Ladle for Non-Ferrous Aluminum and Brass Die Casting and Foundry Operations For_Sale, Features Include: Advance Forward on Pour Command - Pour Forward, Operator-Side Unit, Adjust shot weight on the fly during operation, LCD Color Touch-Screen HMI with up to 500 program storage, Equipped with Remote Operator Push-Button Control Station, Mitsubishi L Series MelSec PLC and MELSERVO-J4 Servo Amplifiers and GT231-VTBD Color HMI controls, second Hand, DCM-5170
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
