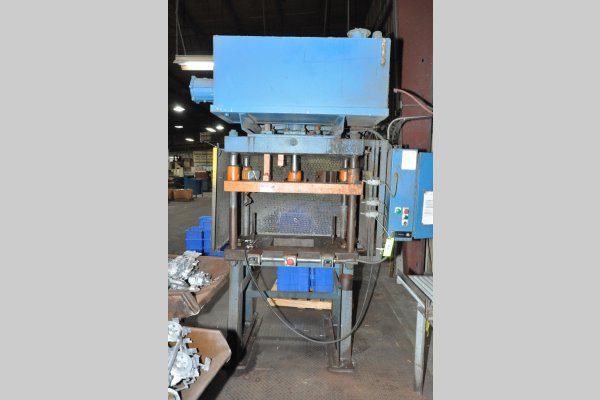

Used Metal Mechanics Model: DCT-30 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | DCT-30 |
| Size | 30 U.S. Ton |
| Inventory Number | DCM-5101 |
Metal Mechanics - DCT-30 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Allen Bradley SLC 500 Controls
Questions? Call (847) 360-9170 and mention DCM-5101.
Features & Accessories
- New in 2004
- Air Safety Ratchet Device
- Drilled & Taped Bed & Moving Platten
- Dual-Button Operation with Zero-Force Proximity Switch Control
- Top Mounted Hydraulics
- Allen Bradley SLC 500 Solid State Control
- Mechanical Ejection System
Item Specifications for DCM-5101
| US | Metric | |
| Model: | DCT-30 | DCT-30 |
| Pressing Tonnage: | 30 tons | 27.21 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 3 inches | 76.2 mm |
| Daylight: | 23 inches | 584.2 mm |
| Stroke: | 20 inches | 508 mm |
| Shut Height: | 3 inches | 76.2 mm |
| Cut-Out in Bed (L/R x F/B): | 16 x 13 inches | 406.4 x 330.2 mm |
| Clearance between Tie Bars (Left to Right): | 37.25 inches | 946.15 mm |
| Clearance between Tie Bars (Front to Back): | 19.5 inches | 495.3 mm |
| Bed Size (Left to Right by Front to Back): | 45.25 x 27 inches | 1149.35 x 685.8 mm |
| Approximate Weight: | 5,000 Pounds | 2,267 kg |
Description
Used, Metal Mechanics Model DCT-30 30 U.S. Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Device, Drilled & Taped Bed & Moving Platten, Dual-Button Operation with Zero-Force Proximity Switch Control, Top Mounted Hydraulics, Allen Bradley SLC 500 Solid State Control, Mechanical Ejection System, Allen Bradley SLC 500 controls, second Hand, DCM-5101
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
