SOLD

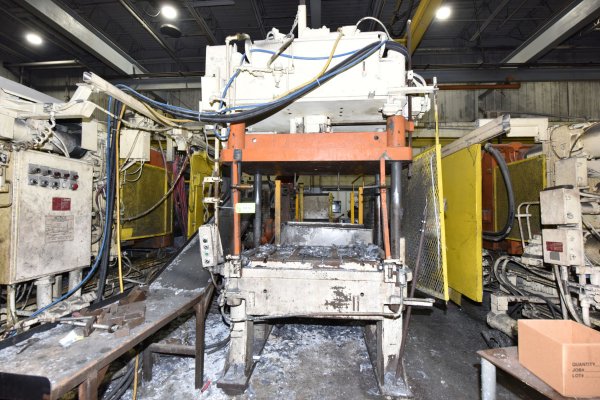

Used B&T Model: TP-30-4 35 U.S. Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press

StatusSold
ManufacturerB&T
ModelTP-30-4
Size35 U.S. Tons
Inventory NumberDCM-5065

B&T - TP-30-4 35 U.S. Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Relay Controls

View Available Trim Presses

Questions? Call (847) 360-9170 and mention DCM-5065.

Features & Accessories

  • Air Safety Ratchet Operation
  • T-Slotted Bed
  • Drill & Tapped Movable Platten
  • Dual Pull-Out Bar Operation
  • Top Mounted Hydraulics

Item Specifications for DCM-5065

USMetric
Model:TP-30-4TP-30
Pressing Tonnage:35 tons31.745 tons
Number of Columns:44
Tie Bar Diameter:3.5 inches88.9 mm
Daylight:34 inches863.6 mm
Stroke:18 inches457.2 mm
Shut Height:16 inches406.4 mm
Clearance between Tie Bars (Left to Right):48 inches1219.2 mm
Clearance between Tie Bars (Front to Back):24 inches609.6 mm
Bed Size (Left to Right by Front to Back):61 x 34 inches1549.4 x 863.6 mm
Overall Size:72 x 48 x 108 inches1.828 x 1.219 x 2.743 meters

Description

Used, B&T Model TP-30-4 35 U.S. Tons Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Air Safety Ratchet Operation, T-Slotted Bed, Drill & Tapped Movable Platten, Dual Pull-Out Bar Operation, Top Mounted Hydraulics, Relay controls, second Hand, DCM-5065

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
